1-1859404-4

  • Available in:
  • Asia
  • Australia/New Zealand

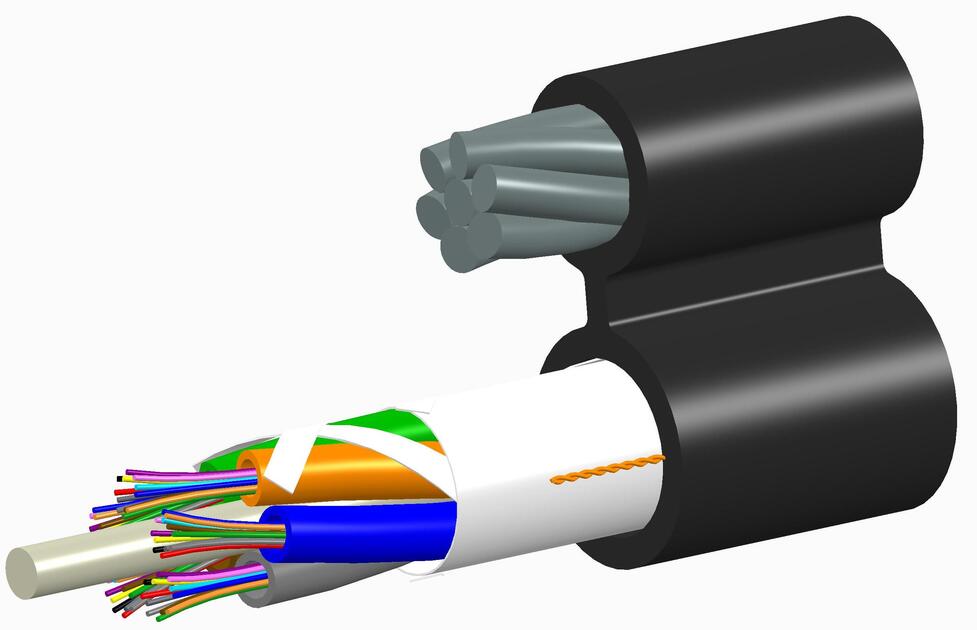

FO CABLE,OUTDOOR,FIGURE8,24F,SM,1KM (7x1.2mm)
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand
Portfolio NETCONNECT®
Product Type Fiber OSP cable

General Specifications

Cable Type Stranded loose tube
Construction Type Non-armored
Fiber Type, quantity 24
Fibers per Subunit, quantity 6
Filler, quantity 1
Jacket Color Black
Subunit Type Gel-filled
Subunit, quantity 4
Total Fiber Count 24

Dimensions

Height Over Jacket 16.4 mm | 0.646 in
Diameter Over Jacket 8.8 mm | 0.346 in

Material Specifications

Jacket Material PE

Mechanical Specifications

Minimum Bend Radius, loaded 176 mm | 6.929 in
Minimum Bend Radius, unloaded 88 mm | 3.465 in
Tensile Load, long term, maximum 11630 N | 2614.529 lbf
Tensile Load, short term, maximum 4410 N | 991.408 lbf
Compression 20 N/mm | 114.203 lb/in
Compression Test Method IEC 60794-1 E3
Flex Test Method IEC 60794-1 E6
Impact 2.94 N-m | 26.021 in lb
Impact Test Method IEC 60794-1 E4
Strain See long and short term tensile loads
Strain Test Method IEC 60794-1 E1

Optical Specifications

Fiber Type G.652.D | OS2

Optical Specifications, Wavelength Specific

Attenuation, maximum 0.23 dB/km @ 1,550 nm | 0.36 dB/km @ 1,310 nm

Environmental Specifications

Installation temperature -20 °C to +70 °C (-4 °F to +158 °F)
Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards IEC 60794-1-2
Environmental Space Aerial, self-support
Jacket UV Resistance UV stabilized
Water Penentration 24 h
Water Penentration Test Method IEC 60794-1 F5

Environmental Test Specifications

Low High Bend Test Method IEC 60794-1 E11
Temperature Cycle Test Method IEC 60794-1 F1

Packaging and Weights

Cable weight 142 kg/km | 95.420 lb/kft
