  6. DBXNH-6565B-VTM | DBXNH-6565B-A2M
Warning Icon
This product was discontinued on: November 30, 2023

For other alternatives, please contact us for more information.

0 Replacement products available

DBXNH-6565B-VTM | DBXNH-6565B-A2M

4-port sector antenna, 2x 698–896 and 2x 1710–2180 MHz, 65° HPBW, RET compatible

Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Interleaved dipole technology providing for attractive, low wind load mechanical package
  • The RF connectors are designed for IP67 rating and the radome for IP56 rating

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum

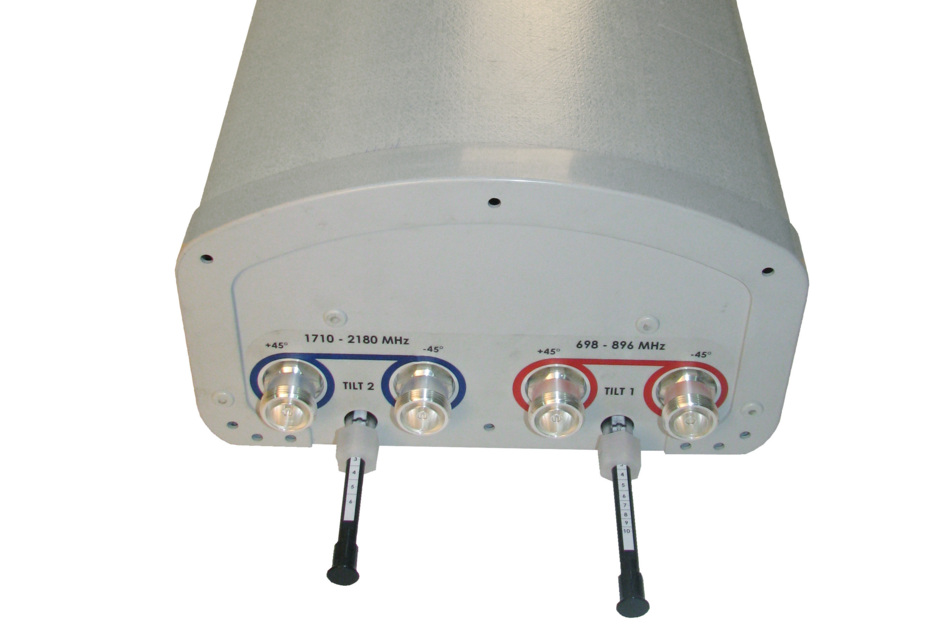

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 4

Remote Electrical Tilt (RET) Information

Model with Factory Installed AISG 2.0 Actuator DBXNH-6565B-A2M

Dimensions

Width 301 mm | 11.85 in
Depth 181 mm | 7.126 in
Length 1847 mm | 72.717 in
Net Weight, without mounting kit 21 kg | 46.297 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1710 – 2180 MHz
Polarization ±45°

Electrical Specifications

Frequency Band, MHz 698–806 806–896 1710–1880 1850–1990 1920–2180
Gain, dBi 15.2 16.0 19.2 19.1 18.2
Beamwidth, Horizontal, degrees 71 67 58 57 63
Beamwidth, Vertical, degrees 12.4 10.9 5.5 5.1 4.8
Beam Tilt, degrees 0–10 0–10 0–6 0–6 0–6
USLS (First Lobe), dB 15 15 15 15 15
Front-to-Back Ratio at 180°, dB 25 25 32 34 32
CPR at Boresight, dB 24 20 25 22 20
CPR at Sector, dB 10 8 10 10 8
Isolation, Cross Polarization, dB 30 30 30 30 30
Isolation, Inter-band, dB 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153
Input Power per Port, maximum, watts 400 400 300 300 300

Mechanical Specifications

Wind Loading @ Velocity, frontal 618.0 N @ 150 km/h (138.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 197.0 N @ 150 km/h (44.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 727.0 N @ 150 km/h (163.4 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 409 mm | 16.102 in
Depth, packed 292 mm | 11.496 in
Length, packed 2163 mm | 85.158 in
Weight, gross 33.5 kg | 73.855 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
