BHD-12S

Base Product: BH-SERIES-HANGER-BLOCKS

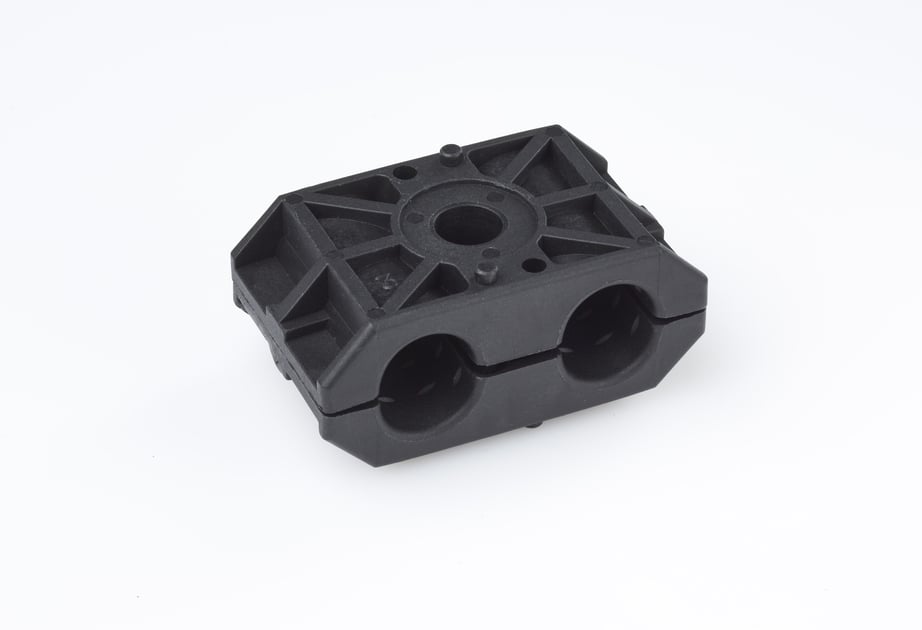

Double Block Hanger for 1/2 in coaxial cable (FSJ4)

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Hanger kit
Product Brand HELIAX®
Ordering Note CommScope® standard product (Global)

General Specifications

Cables per Hanger 2
Color Black
Hanger Type Double block hanger
Mounting Mounting hole clearance for 3/8, 16 UNC or M10 threaded rod

Dimensions

Maximum Stack Height 4
Height 40.1 mm | 1.579 in
Width 33 mm | 1.299 in
Length 67.1 mm | 2.642 in
Compatible Cable Diameter Range 13.5–15.5 mm
Compatible Diameter, maximum 15.5 mm | 0.610 in
Compatible Diameter, minimum 13.5 mm | 0.531 in
Nominal Size 1/2 in

Electrical Specifications

Return Loss Effect, maximum 0.1 dB
DTF Effect, maximum 0.1 dB

Material Specifications

Material Type Engineered plastic

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 3.8 cm | 1.496 in
Width, packed 17.8 cm | 7.008 in
Length, packed 25.4 cm | 10 in
Packaging quantity 10
Weight, gross 0.37 kg | 0.816 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
