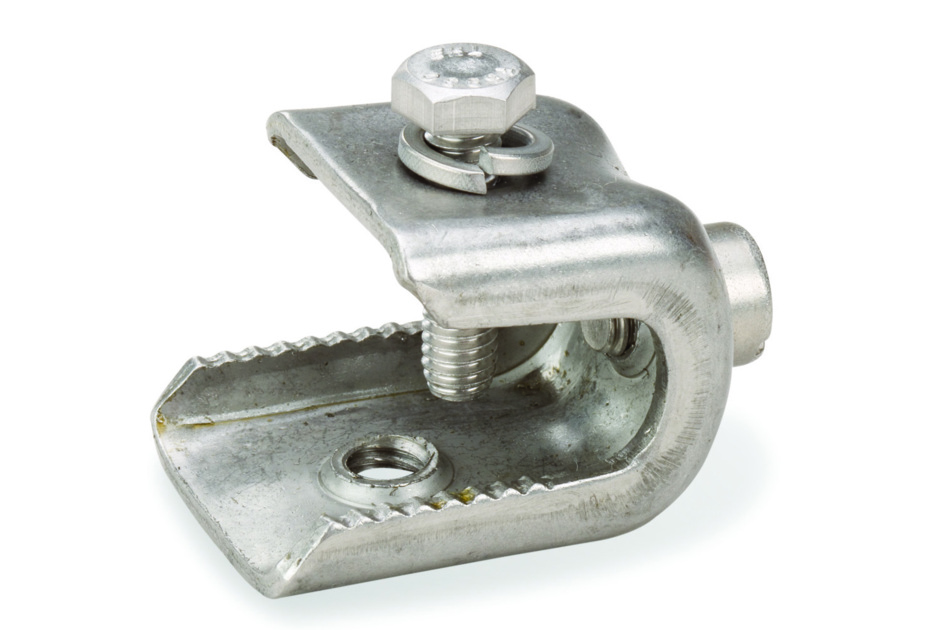

Angle Adapter, compact 3/8 in tapped hole
Specifications
Product Classification
| Product Type | Adapter |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Adapter Type | Angle adapter |
| Mounting | 3/8 in tapped hole |
Dimensions
| Inside Width | 16.002 mm | 0.63 in |
| Outside Width | 38.1 mm | 1.5 in |
| Inside Length | 16.002 mm | 0.63 in |
| Outside Length | 46.99 mm | 1.85 in |
| Material Thickness | 2.972 mm | 0.117 in |
Material Specifications
| Material Type | Stainless steel |
Mechanical Specifications
| Installation Torque, maximum | 17.626 N-m | 13 ft lb |
| Installation Torque, minimum | 14.914 N-m | 11 ft lb |
| Maximum Loading | Double stack, 1-5/8 in cable |
Packaging and Weights
| Height, packed | 14 cm | 5.512 in |
| Width, packed | 14 cm | 5.512 in |
| Length, packed | 11 cm | 4.331 in |
| Packaging quantity | 10 |
| Weight, gross | 1.32 kg | 2.91 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
Product Classification
| Product Type | Adapter |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Adapter Type | Angle adapter |
| Mounting | 3/8 in tapped hole |
Dimensions
| Inside Width | 16.002 mm | 0.63 in |
| Outside Width | 38.1 mm | 1.5 in |
| Inside Length | 16.002 mm | 0.63 in |
| Outside Length | 46.99 mm | 1.85 in |
| Material Thickness | 2.972 mm | 0.117 in |
Material Specifications
| Material Type | Stainless steel |
Mechanical Specifications
| Installation Torque, maximum | 17.626 N-m | 13 ft lb |
| Installation Torque, minimum | 14.914 N-m | 11 ft lb |
| Maximum Loading | Double stack, 1-5/8 in cable |
Packaging and Weights
| Height, packed | 14 cm | 5.512 in |
| Width, packed | 14 cm | 5.512 in |
| Length, packed | 11 cm | 4.331 in |
| Packaging quantity | 10 |
| Weight, gross | 1.32 kg | 2.91 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
