SF-PK-278-278

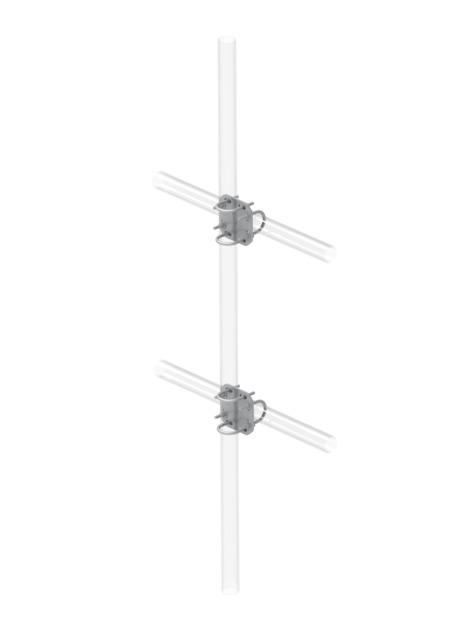

Sector Frame Pipe Mount Kit, with (2) 2-7/8 to 2-7/8 in Crossover plates and (1) 2-7/8" OD x 96" Pipe
Specifications
Product Classification
| Product Type | Pipe mount kit |
General Specifications
| Mounting | Round member |
| Pipe, quantity | 1 |
Dimensions
| Pipe Length | 2438.400 mm | 96 in |
| Mounting Diameter, maximum | 73.025 mm | 2.875 in |
| Mounting Diameter, minimum | 73.025 mm | 2.875 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Crossover plates | Plain end pipes | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 45.5 kg | 100.310 lb |
Product Classification
| Product Type | Pipe mount kit |
General Specifications
| Mounting | Round member |
| Pipe, quantity | 1 |
Dimensions
| Pipe Length | 2438.400 mm | 96 in |
| Mounting Diameter, maximum | 73.025 mm | 2.875 in |
| Mounting Diameter, minimum | 73.025 mm | 2.875 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Crossover plates | Plain end pipes | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 45.5 kg | 100.310 lb |
