SA-B278

Base Product: MOUNT-ACCESSORIES

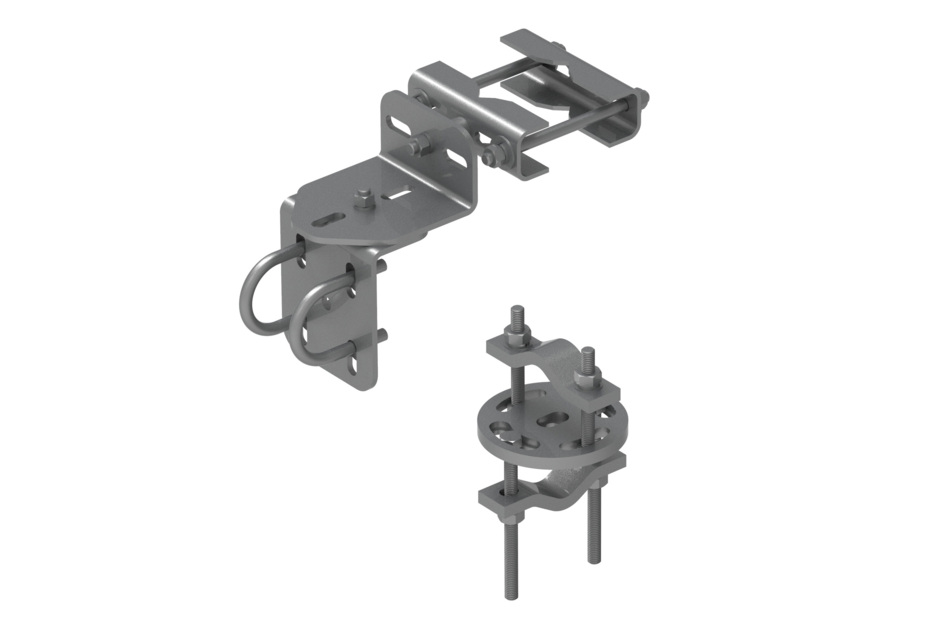

Stiff Arm /Tieback Brackets for 2-7/8 in OD pipe - Pipe not included

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Stiff arm mount

General Specifications

Mounting Round and angle legs
Pipe, quantity 0

Dimensions

Height 152.4 mm | 6 in
Width 203.2 mm | 8 in
Length 203.2 mm | 8 in
Mounting Diameter, maximum 88.900 mm | 3.5 in
Mounting Diameter, minimum 48.260 mm | 1.9 in
Pipe Outer Diameter 73.660 mm | 2.9 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Attachment hardware | Brackets
Packaging quantity 1
Weight, net 7.471 kg | 16.47 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Product Classification

Product Type Stiff arm mount

General Specifications

Mounting Round and angle legs
Pipe, quantity 0

Dimensions

Height 152.4 mm | 6 in
Width 203.2 mm | 8 in
Length 203.2 mm | 8 in
Mounting Diameter, maximum 88.900 mm | 3.5 in
Mounting Diameter, minimum 48.260 mm | 1.9 in
Pipe Outer Diameter 73.660 mm | 2.9 in

Material Specifications

Material Type Hot dip galvanized steel

Packaging and Weights

Included Attachment hardware | Brackets
Packaging quantity 1
Weight, net 7.471 kg | 16.47 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
