HG-091242-158

Base Product: HG-SERIES-GROMMETS

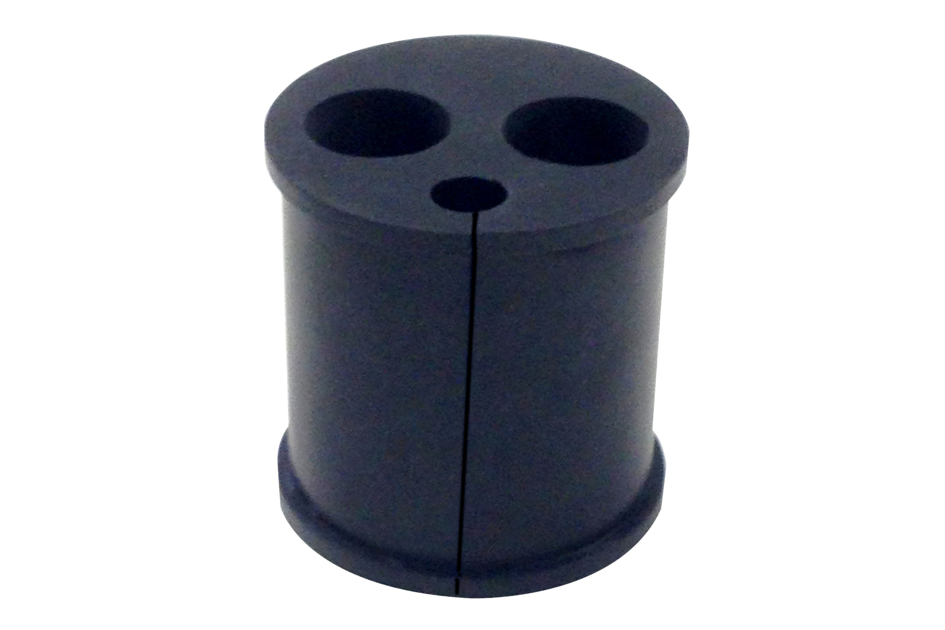

Grommet with 1 x 9 mm hole and 2 x 23 mm holes for 1-5/8 in SnapStak or Click-on Hanger

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Typically used for 8 AWG power trunk cables and 10mm fiber trunk cables

Product Classification

Product Type Grommet
Product Brand HELIAX®
Ordering Note CommScope® non-standard product

General Specifications

Adapter Type Adapter
Cables per Hanger 3
Color Black

Dimensions

Height 55.626 mm | 2.19 in
Diameter Range (cable 1) 9 mm
Diameter Range (cable 2) 23 mm
Nominal Size 1-5/8 in

Material Specifications

Material Type EPDM rubber

Packaging and Weights

Packaging quantity 10
Weight, gross 0.74 kg | 1.631 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
