CO1HHG2
Base Product
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- North America

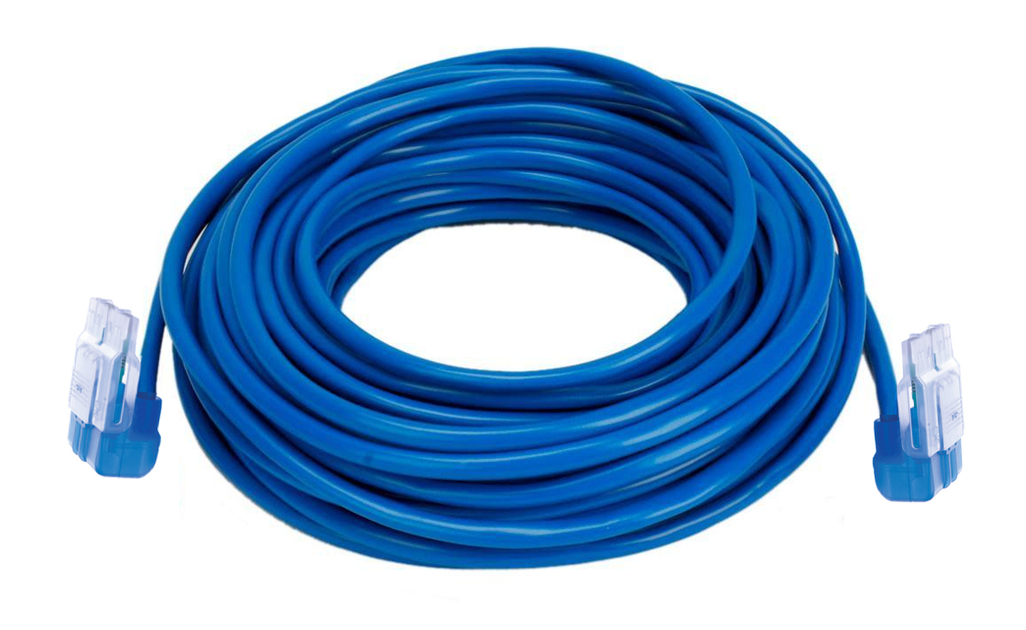

HighBand® Cat6A Patch Cord, Rear Facing to Rear Facing
Specifications
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | North America |
| Portfolio | CommScope® |
| Product Type | Twisted pair patch cord |
| Product Brand | HighBand® |
General Specifications
| ANSI/TIA Category | 6A |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid |
| Interface, Connector A | 4-pair plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | 4-pair plug |
| Interface Feature, connector B | Standard |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
| Cable Assembly Length Range (ft) | 1 – 100 |
| Diameter Over Jacket | 7.24 mm | 0.285 in |
| Compatible Conductor Gauge, solid | 24 AWG |
| Compatible Conductor Gauge, stranded | 24 AWG |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
Environmental Specifications
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Environmental Space | Indoor | Non-plenum |
| Flammability Rating | CM |
| Safety Standard | UL 1863 |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | North America |
| Portfolio | CommScope® |
| Product Type | Twisted pair patch cord |
| Product Brand | HighBand® |
General Specifications
| ANSI/TIA Category | 6A |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Solid |
| Interface, Connector A | 4-pair plug |
| Interface Feature, connector A | Standard |
| Interface, Connector B | 4-pair plug |
| Interface Feature, connector B | Standard |
| Pairs, quantity | 4 |
| Transmission Standards | IEEE 802.3bt Type 4 |
| Wiring | T568B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 30 |
| Cable Assembly Length Range (ft) | 1 – 100 |
| Diameter Over Jacket | 7.24 mm | 0.285 in |
| Compatible Conductor Gauge, solid | 24 AWG |
| Compatible Conductor Gauge, stranded | 24 AWG |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
Environmental Specifications
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Environmental Space | Indoor | Non-plenum |
| Flammability Rating | CM |
| Safety Standard | UL 1863 |
