DB375

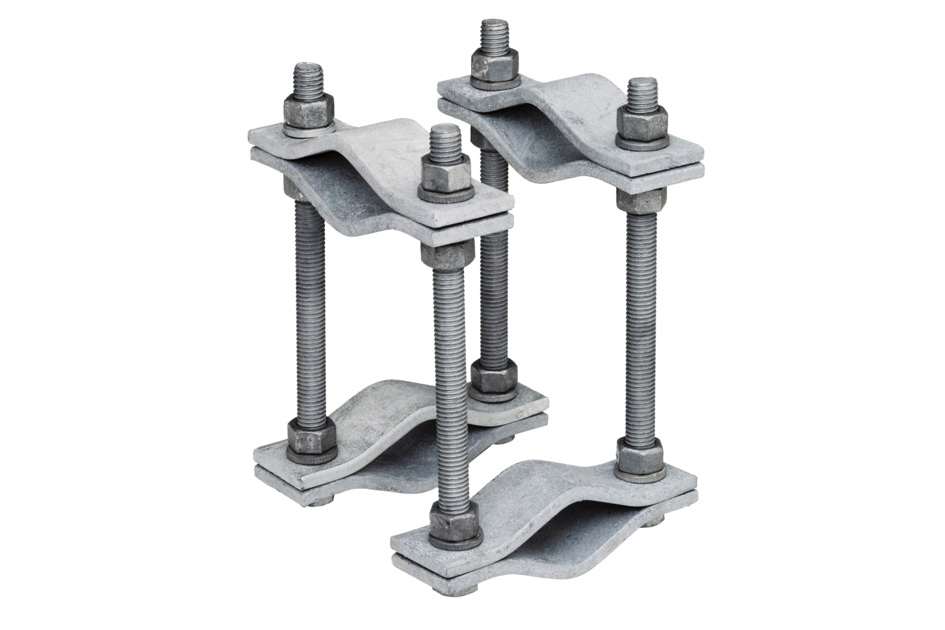

Pipe Mounting Kit for 3 in (76.2 mm) OD round members. Mounting Clamps are used to mount horizontal members to vertical members. Set of two.
Specifications
Product Classification
| Product Type | Pipe mounting kit |
General Specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 76.2 mm | 3 in |
| Compatible Diameter, minimum | 33 mm | 1.299 in |
Material Specifications
| Material Type | Galvanized steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 2 |
| Weight, gross | 6.8 kg | 14.991 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Product Type | Pipe mounting kit |
General Specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 76.2 mm | 3 in |
| Compatible Diameter, minimum | 33 mm | 1.299 in |
Material Specifications
| Material Type | Galvanized steel |
Packaging and Weights
| Included | Brackets | Hardware |
| Packaging quantity | 2 |
| Weight, gross | 6.8 kg | 14.991 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
