FE-182308-F12

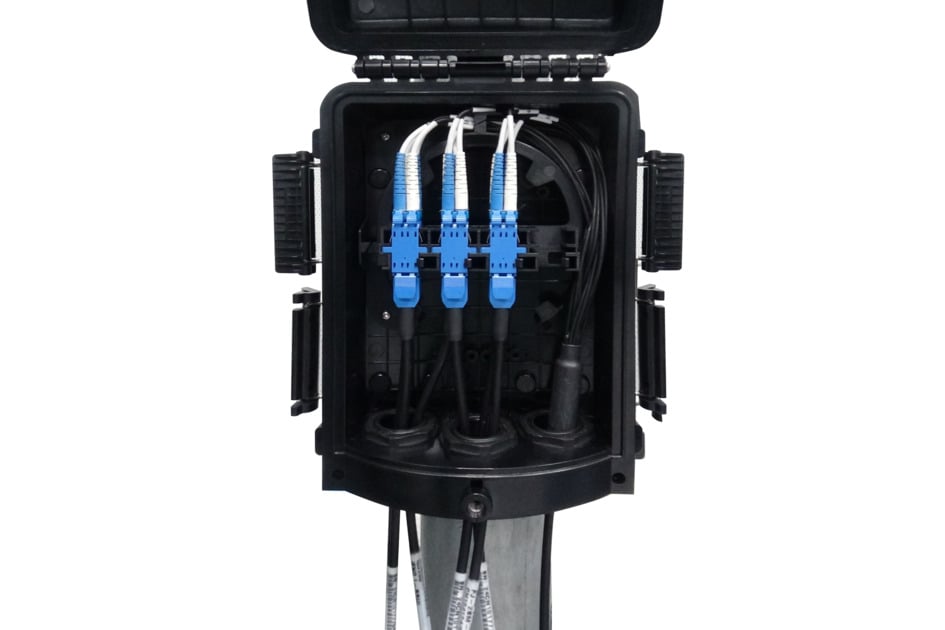

HELIAX® Fiber Junction Box for 1 Trunk / 6 Jumper Cables

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Outdoor junction box
Product Brand	HELIAX®

Application	Used as a fiber/power junction box
Cable Entry, quantity, maximum, bottom	7
Color	Black
Fiber System Configuration Type	Hybrid with OVP, 6 RRU
Mounting	Pipe, 44–114 mm (1.75–4.5 in) OD \| Wall

Height	233.985 mm \| 9.212 in
Width	181.991 mm \| 7.165 in
Depth	85.979 mm \| 3.385 in
Cable Entry Fiber Gland Size, maximum	5 mm \| 0.197 in
Cable Entry Fiber Gland Size, minimum	5 mm \| 0.197 in
Cable Entry Jumper Gland Size, maximum	5 mm \| 0.197 in
Cable Entry Jumper Gland Size, minimum	5 mm \| 0.197 in

Material Type

High-impact polycarbonate, UV resistant

Included	Mounting kit
Weight, net	1.500 kg \| 3.30693 lb

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Outdoor junction box
Product Brand	HELIAX®

Application	Used as a fiber/power junction box
Cable Entry, quantity, maximum, bottom	7
Color	Black
Fiber System Configuration Type	Hybrid with OVP, 6 RRU
Mounting	Pipe, 44–114 mm (1.75–4.5 in) OD \| Wall

Height	233.985 mm \| 9.212 in
Width	181.991 mm \| 7.165 in
Depth	85.979 mm \| 3.385 in
Cable Entry Fiber Gland Size, maximum	5 mm \| 0.197 in
Cable Entry Fiber Gland Size, minimum	5 mm \| 0.197 in
Cable Entry Jumper Gland Size, maximum	5 mm \| 0.197 in
Cable Entry Jumper Gland Size, minimum	5 mm \| 0.197 in
