RVV-33B-R3

6-port sector antenna, 2x 694–960 and 4x 1695–2690 MHz, 33° HPBW, 3x RET

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (2)
Power Consumption, active state, maximum 13 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 1830 mm | 72.047 in
Net Weight, antenna only 44 kg | 97.003 lb

Array Layout

Click on image to enlarge.

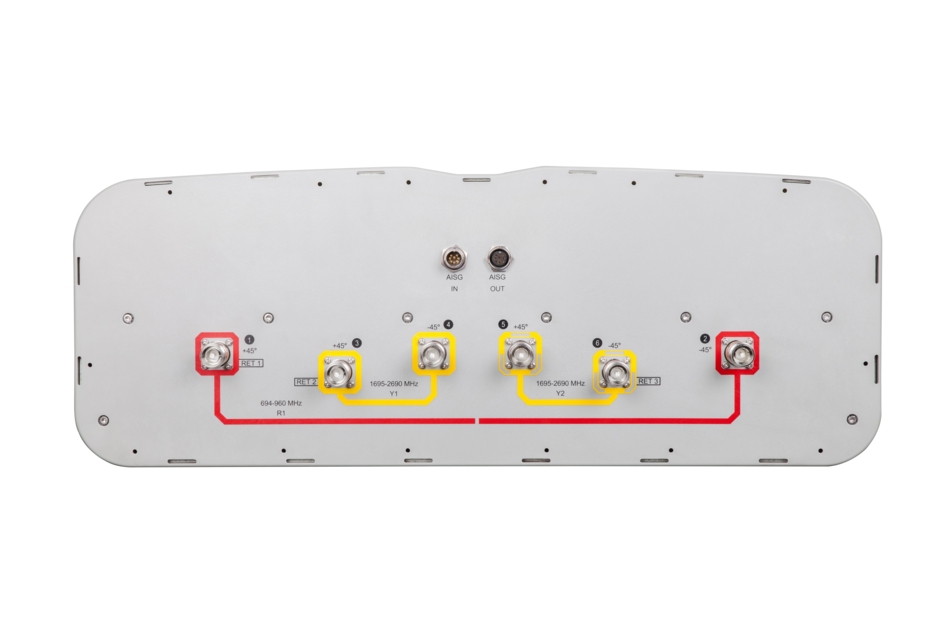

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

R1 R1 R1 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2
Frequency Band, MHz 698–806 790–896 890–960 1695–1990 1920–2300 2300–2500 2490–2690
RF Port 1,2 1,2 1,2 3,4,5,6 3,4,5,6 3,4,5,6 3,4,5,6
Gain at Mid Tilt, dBi 17.5 18.2 18.6 19.8 20.5 21.3 21.3
Beamwidth, Horizontal, degrees 36 32 30 34 33 28 26
Beamwidth, Vertical, degrees 12.4 11.2 10.5 5.6 5 4.5 4.2
Beam Tilt, degrees 2–13 2–13 2–13 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 20 20 20 19 20 17 18
Front-to-Back Ratio at 180°, dB 33 36 35 35 35 34 35
Isolation, Cross Polarization, dB 28 26 26 28 28 28 28
Isolation, Inter-band, dB 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 200 200 200 200

Mechanical Specifications

Wind Loading @ Velocity, frontal 764.0 N @ 150 km/h (171.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 254.0 N @ 150 km/h (57.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,148.0 N @ 150 km/h (258.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 785.0 N @ 150 km/h (176.5 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 752 mm | 29.606 in
Depth, packed 387 mm | 15.236 in
Length, packed 1982 mm | 78.032 in
Weight, gross 66.4 kg | 146.387 lb

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (2)
Power Consumption, active state, maximum 13 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 1830 mm | 72.047 in
Net Weight, antenna only 44 kg | 97.003 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical Specifications

R1 R1 R1 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2
Frequency Band, MHz 698–806 790–896 890–960 1695–1990 1920–2300 2300–2500 2490–2690
RF Port 1,2 1,2 1,2 3,4,5,6 3,4,5,6 3,4,5,6 3,4,5,6
Gain at Mid Tilt, dBi 17.5 18.2 18.6 19.8 20.5 21.3 21.3
Beamwidth, Horizontal, degrees 36 32 30 34 33 28 26
Beamwidth, Vertical, degrees 12.4 11.2 10.5 5.6 5 4.5 4.2
Beam Tilt, degrees 2–13 2–13 2–13 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 20 20 20 19 20 17 18
Front-to-Back Ratio at 180°, dB 33 36 35 35 35 34 35
Isolation, Cross Polarization, dB 28 26 26 28 28 28 28
Isolation, Inter-band, dB 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 200 200 200 200

Mechanical Specifications

Wind Loading @ Velocity, frontal 764.0 N @ 150 km/h (171.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 254.0 N @ 150 km/h (57.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,148.0 N @ 150 km/h (258.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 785.0 N @ 150 km/h (176.5 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 752 mm | 29.606 in
Depth, packed 387 mm | 15.236 in
Length, packed 1982 mm | 78.032 in
Weight, gross 66.4 kg | 146.387 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
CE Compliant with the relevant CE product directives
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
