JAHH-33C-R3B

8-port sector antenna, 2x 698–798, 2x 824-894 and 4x 1695–2360 MHz, 33° HPBW, low bands each have a RET and high bands share a RET. Internal SBT for low band and internal SBT for high band.

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
  • One RET for 700MHz, one RET for 850MHz, and one RET for both high bands to ensure same tilt level for 4x Rx or 4x MIMO
  • Internal filter on low band and interleaved dipole technology providing for attractive, low wind load mechanical package
  • Separate RS-485 RET input/output for low and high band
  • Narrow beamwidth capacity antenna for higher level of densification and enhanced data throughput

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 5
Internal RET High band (1) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2438 mm | 95.984 in
Net Weight, without mounting kit 66 kg | 145.505 lb

Array Layout

Click on image to enlarge.

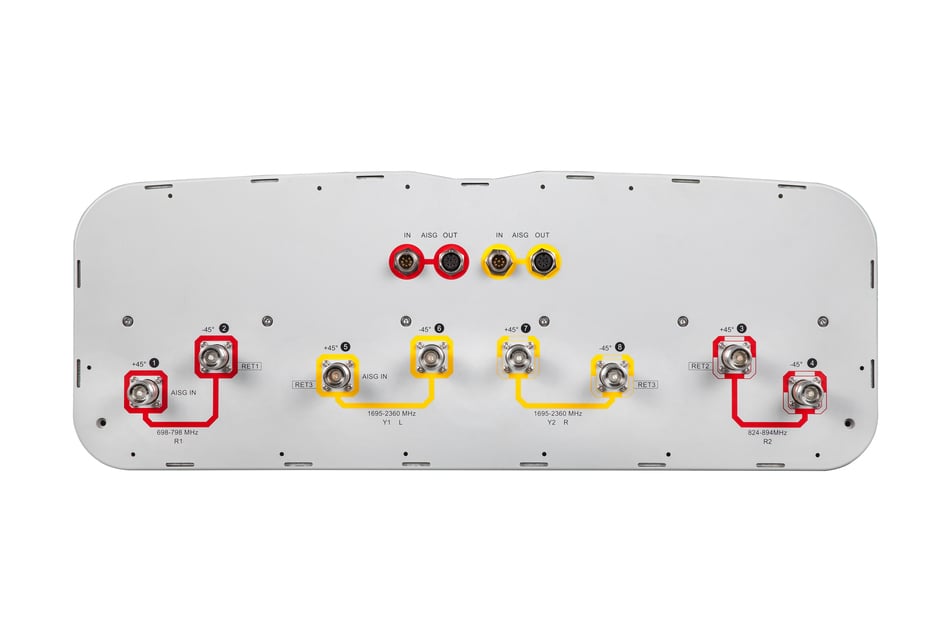

Port Configuration

Click on image to enlarge.

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 798 MHz | 824 – 894 MHz | 1695 – 2360 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 698–798 824–894 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 18.3 19.0 19.8 20.2 20.6 21.4
Beamwidth, Horizontal, degrees 36 32 34 34 33 29
Beamwidth, Vertical, degrees 9.5 8.6 5.8 5.4 5 4.6
Beam Tilt, degrees 0–10 0–10 2–12 2–12 2–12 2–12
Horizontal Sidelobe, dB 21 20 20 18 18 19
USLS (First Lobe), dB 18 21 17 18 18 20
Front-to-Back Ratio at 180°, dB 32 39 35 37 38 36
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 150 150 250 250 250 200

Mechanical Specifications

Wind Loading @ Velocity, frontal 954.0 N @ 150 km/h (214.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 355.0 N @ 150 km/h (79.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,434.0 N @ 150 km/h (322.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,086.0 N @ 150 km/h (244.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 752 mm | 29.606 in
Depth, packed 382 mm | 15.039 in
Length, packed 2590 mm | 101.969 in
Weight, gross 92.7 kg | 204.368 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

General Specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote Electrical Tilt (RET) Information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal Bias Tee Port 1 | Port 5
Internal RET High band (1) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2438 mm | 95.984 in
Net Weight, without mounting kit 66 kg | 145.505 lb

Electrical Specifications

Impedance 50 ohm
Operating Frequency Band 698 – 798 MHz | 824 – 894 MHz | 1695 – 2360 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical Specifications

Frequency Band, MHz 698–798 824–894 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 18.3 19.0 19.8 20.2 20.6 21.4
Beamwidth, Horizontal, degrees 36 32 34 34 33 29
Beamwidth, Vertical, degrees 9.5 8.6 5.8 5.4 5 4.6
Beam Tilt, degrees 0–10 0–10 2–12 2–12 2–12 2–12
Horizontal Sidelobe, dB 21 20 20 18 18 19
USLS (First Lobe), dB 18 21 17 18 18 20
Front-to-Back Ratio at 180°, dB 32 39 35 37 38 36
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 150 150 250 250 250 200

Mechanical Specifications

Wind Loading @ Velocity, frontal 954.0 N @ 150 km/h (214.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 355.0 N @ 150 km/h (79.8 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,434.0 N @ 150 km/h (322.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 1,086.0 N @ 150 km/h (244.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and Weights

Width, packed 752 mm | 29.606 in
Depth, packed 382 mm | 15.039 in
Length, packed 2590 mm | 101.969 in
Weight, gross 92.7 kg | 204.368 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
