2P-2L-C1
2-port sector antenna, 2x 694–960 MHz, 65° HPBW, 1x RET
Features and Benefits
- Utilizes RET-PMOD-A20-1A01
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 2x 8 pin connector as per IEC 60130-9 Daisy chain in: Male / Daisy chain out: Female Pin3: RS485A(AISG_B), Pin5: RS485B(AISG_A), Pin6: DC 10~30V, Pin7: DC_ Return |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 320 mm | 12.598 in |
| Depth | 140 mm | 5.512 in |
| Length | 2500 mm | 98.425 in |
| Net Weight, without mounting kit | 21 kg | 46.297 lb |

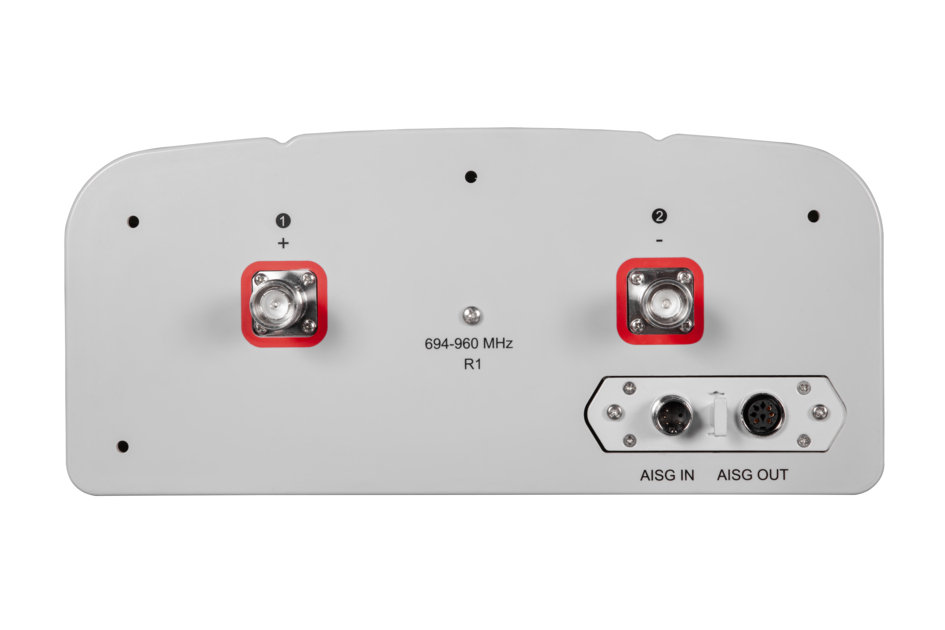

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W |
Electrical Specifications
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| Gain, dBi | 16.8 | 17.4 | 17.8 |
| Beamwidth, Horizontal, degrees | 69 | 66 | 63 |
| Beamwidth, Vertical, degrees | 8.9 | 7.8 | 7.2 |
| Beam Tilt, degrees | 3–12 | 3–12 | 3–12 |
| USLS (First Lobe), dB | 17 | 20 | 18 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 31 | 33 | 31 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 |
Mechanical Specifications
| Mechanical Tilt Range | 0°–10° |
| Wind Loading @ Velocity, frontal | 418.0 N @ 150 km/h (94.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 378.0 N @ 150 km/h (85.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 915.0 N @ 150 km/h (205.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 425 mm | 16.732 in |
| Depth, packed | 235 mm | 9.252 in |
| Length, packed | 2780 mm | 109.449 in |
| Weight, gross | 30.6 kg | 67.461 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
General Specifications
| Antenna Type | Sector |
| Band | Single band |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 2x 8 pin connector as per IEC 60130-9 Daisy chain in: Male / Daisy chain out: Female Pin3: RS485A(AISG_B), Pin5: RS485B(AISG_A), Pin6: DC 10~30V, Pin7: DC_ Return |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 320 mm | 12.598 in |
| Depth | 140 mm | 5.512 in |
| Length | 2500 mm | 98.425 in |
| Net Weight, without mounting kit | 21 kg | 46.297 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W |
Electrical Specifications
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| Gain, dBi | 16.8 | 17.4 | 17.8 |
| Beamwidth, Horizontal, degrees | 69 | 66 | 63 |
| Beamwidth, Vertical, degrees | 8.9 | 7.8 | 7.2 |
| Beam Tilt, degrees | 3–12 | 3–12 | 3–12 |
| USLS (First Lobe), dB | 17 | 20 | 18 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 31 | 33 | 31 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 |
Mechanical Specifications
| Mechanical Tilt Range | 0°–10° |
| Wind Loading @ Velocity, frontal | 418.0 N @ 150 km/h (94.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 378.0 N @ 150 km/h (85.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 915.0 N @ 150 km/h (205.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 425 mm | 16.732 in |
| Depth, packed | 235 mm | 9.252 in |
| Length, packed | 2780 mm | 109.449 in |
| Weight, gross | 30.6 kg | 67.461 lb |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| UK-ROHS | Compliant |
