CZ0842-000 | BUDI-2S-T-08S2ES

Base Product: BUDI-2S

  • Available in:
  • EMEA

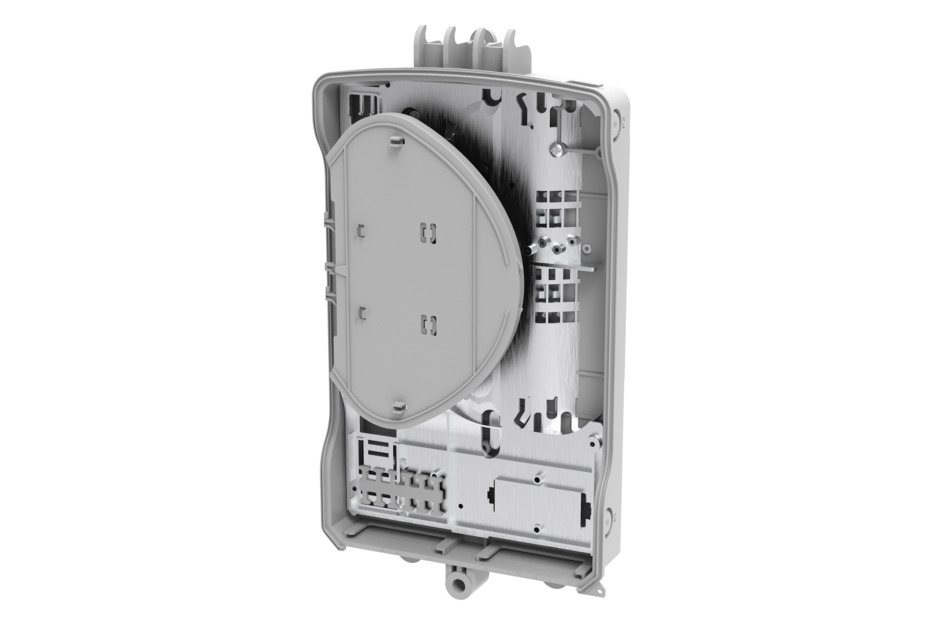

BUDI™ Fiber Optic Wall mount Enclosure, 8 SC/APC adapters, single element FIST splice trays for SMOUV splices

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Compact, wall mountable fiber enclosures for indoor and outdoor use
  • Specifically designed for fast FTTH deployment and easy customer connection
  • Available with splicing (FIST) and/or patching and/or splitter combinations
  • Multiple and modular wrap around cable port sealing options

Product Classification

Regional Availability EMEA
Portfolio CommScope®
Product Type Fiber wall box
Product Brand BUDI™
Product Series BUDI-2S

General Specifications

Functionality Patching | Splicing
Access Front
Enclosure Color Gray
Front Cover Type Snap-on cover
Interface SC/APC
Mounting Wall
Port, quantity 8
Splice Tray Construction SE (Single element)
Splicing Capacity, maximum 8

Dimensions

Height 260 mm | 10.236 in
Height, with cover 285 mm | 11.22 in
Width 155 mm | 6.102 in
Depth 60 mm | 2.362 in

Dimension Drawing

Click on image to enlarge.

Material Specifications

Enclosure Material Type LSZH thermoplastic

Optical Specifications

Fiber Mode Singlemode

Environmental Specifications

Environmental Space Indoor/Outdoor
Qualification Standards IEC 60529, IP54 | IEC 61753-1, category G

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted

Product Classification

Regional Availability EMEA
Portfolio CommScope®
Product Type Fiber wall box
Product Brand BUDI™
Product Series BUDI-2S

General Specifications

Functionality Patching | Splicing
Access Front
Enclosure Color Gray
Front Cover Type Snap-on cover
Interface SC/APC
Mounting Wall
Port, quantity 8
Splice Tray Construction SE (Single element)
Splicing Capacity, maximum 8

Dimensions

Height 260 mm | 10.236 in
Height, with cover 285 mm | 11.22 in
Width 155 mm | 6.102 in
Depth 60 mm | 2.362 in

Material Specifications

Enclosure Material Type LSZH thermoplastic

Optical Specifications

Fiber Mode Singlemode

Environmental Specifications

Environmental Space Indoor/Outdoor
Qualification Standards IEC 60529, IP54 | IEC 61753-1, category G

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
