NG4-CH200000

Base Product: NG4-CHASSIS

  • Available in:
  • Latin America
  • North America

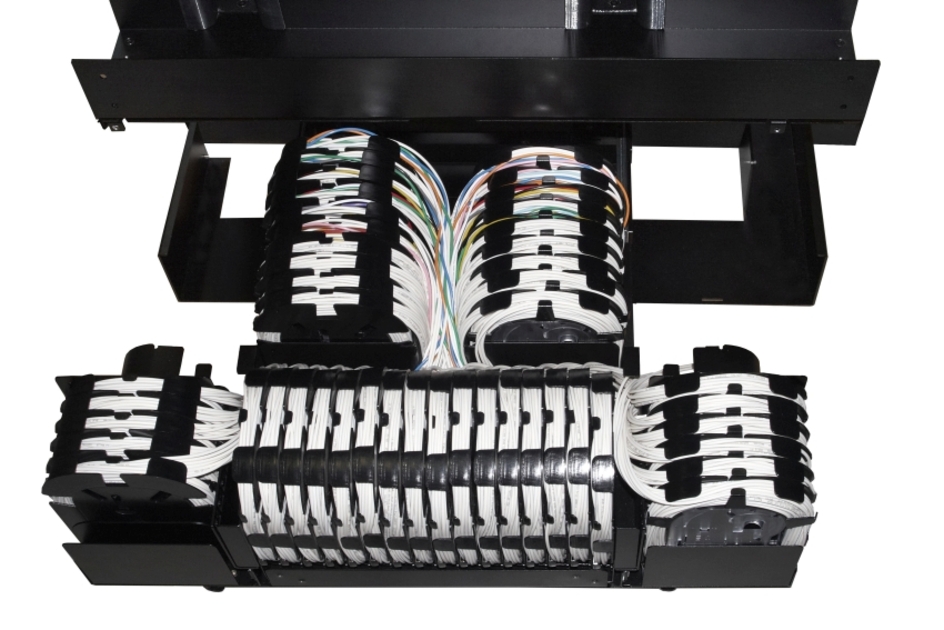

NG4access® Universal Splice Chassis, unloaded, for holding up to 48 splice trays, black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Each splice chassis can hold up to 48 splice trays
  • Each tray provides up to 72 fibers, for a total of 3,456 fibers per splice chassis
  • Can be installed without sacrificing overall frame termination density

Product Classification

Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Fiber splice chassis
Product Brand NG4access®
Product Series NG4

General Specifications

Functionality Splicing
Application Used in NG4access-style frames only
Body Style Symmetrical
Color Black
Growth Configuration Unloaded
Interface, front Unloaded
Rack Type NG4
Rack Units 9
Shelf Movement Sliding
Total Ports, quantity 48

Dimensions

Height 406.15 mm | 15.99 in
Width 685.8 mm | 27 in
Depth 313.94 mm | 12.36 in

Material Specifications

Finish Powder coated
Material Type Steel

Packaging and Weights

Included Mounting hardware
Packaging quantity 1
Weight, net 33.566 kg | 74 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Fiber splice chassis
Product Brand NG4access®
Product Series NG4

General Specifications

Functionality Splicing
Application Used in NG4access-style frames only
Body Style Symmetrical
Color Black
Growth Configuration Unloaded
Interface, front Unloaded
Rack Type NG4
Rack Units 9
Shelf Movement Sliding
Total Ports, quantity 48

Dimensions

Height 406.15 mm | 15.99 in
Width 685.8 mm | 27 in
Depth 313.94 mm | 12.36 in

Material Specifications

Finish Powder coated
Material Type Steel

Packaging and Weights

Included Mounting hardware
Packaging quantity 1
Weight, net 33.566 kg | 74 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
