722356-000 | RPBS-C-I-50/25-150

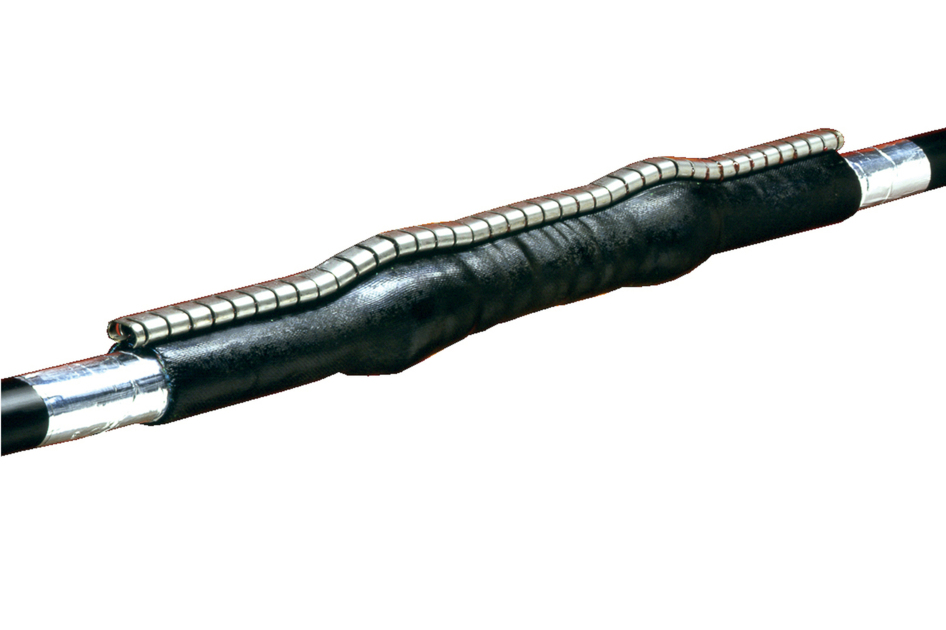

RPBS wraparound delivery sleeve heat shrink kit, pressurized, for 25 to 50 mm cable diameter, 150 mm sheet opening

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Combines an improved application method for standard resin blocking compounds with the advantages of the wraparound heat-shrinkable sleeve
Used with suitable commercially available resins, the system forms a pressure block for the whole pressurized cable range

Specifications

Product Classification

Color	Black
Sealant Type	Hotmelt adhesive

Height	270 mm \| 10.63 in
Length	500 mm \| 19.685 in
Expanded Inside Diameter, minimum	50 mm \| 1.969 in
Recovered Inside Diameter, maximum	25 mm \| 0.984 in
Single Cable Diameter, maximum	50 mm \| 1.969 in
Single Cable Diameter, minimum	25 mm \| 0.984 in

Material Type

Fiber-reinforced multi-layer sealing sleeve

Environmental Space

Buried | Ducted

Packaging quantity	1
Packaging Type	Bag \| Carton

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
