M12L

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

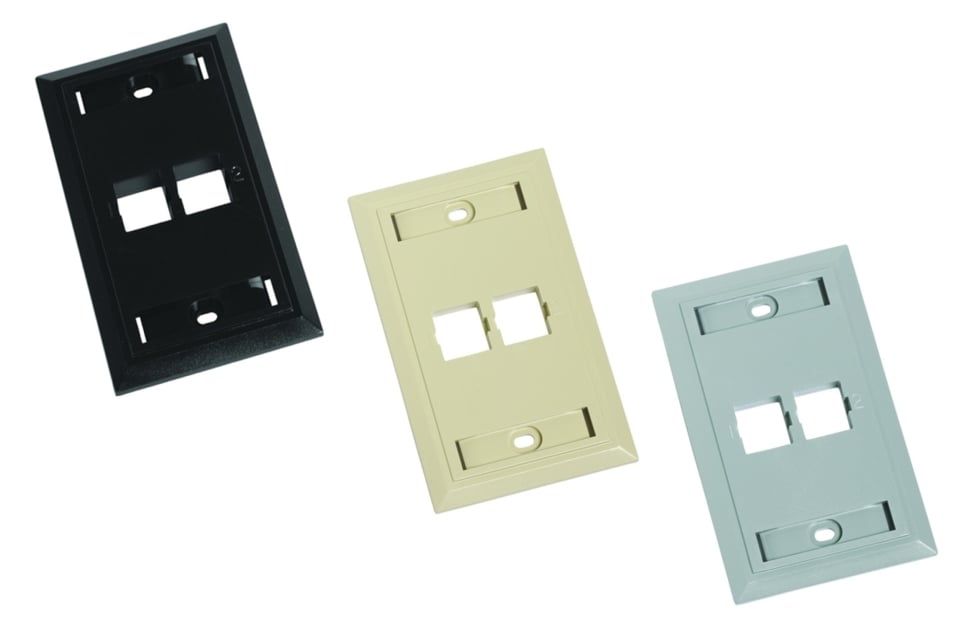

M12L Type Faceplate

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of M12L by selecting options

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Faceplate kit
Product Series	M Series

General Specifications

Application	Used with M Series modular information outlet
Color	Almond \| Black \| Brown \| Gray \| Ivory \| Pro white \| White
Mounting	Flush
Total Ports, quantity	2

Dimensions

Height	115.824 mm \| 4.56 in
Width	71.374 mm \| 2.81 in
Depth	7.366 mm \| 0.29 in

Material Specifications

Material Type

High-impact, flame retardant, thermoplastic

Environmental Specifications

Environmental Space	Indoor
Flammability Rating	UL 94 V-0
Safety Standard	UL \| cUL

Packaging and Weights

Included	Label (2) \| Label cover (2) \| Mounting screw (2)
Packaging quantity	1
Packaging Type	Bag
Weight, net	0.036 kg \| 0.08 lb
