This product was discontinued on: February 25, 2021

For other alternatives, please contact us for more information.

0 Replacement products available

760163980 | MFC-12MP-6SP-30-BG

Base Product: QWIK-FUSE-MPO

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

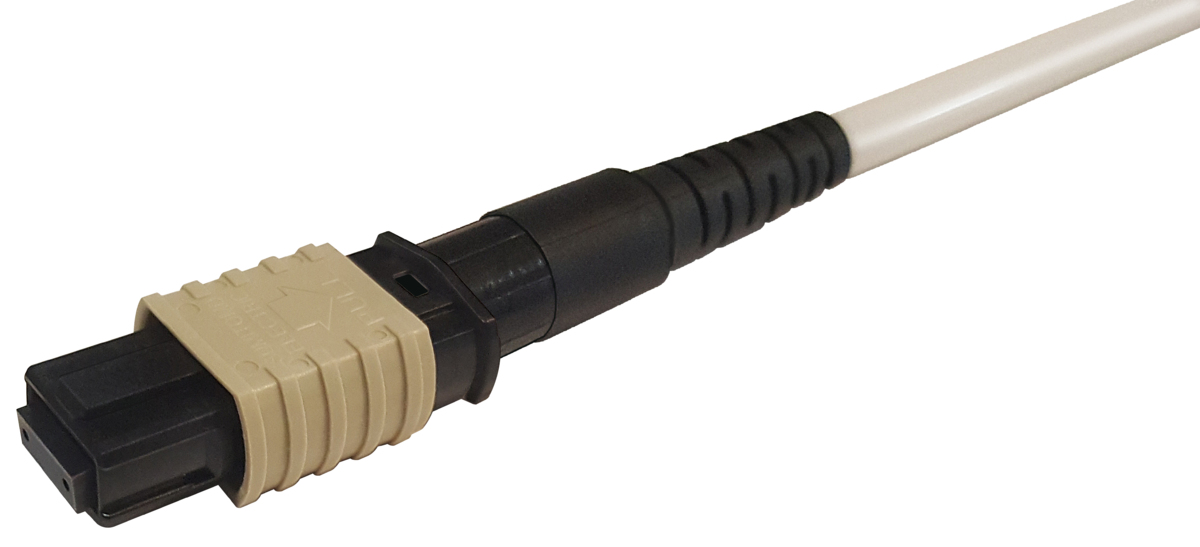

Qwik-Fuse MPO Connector, UNPINNED, OM1, Beige, for 3.0 mm round cable, two per pack

Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber connector
Product Brand OptiSPEED® | Qwik
Product Series Qwik-Fuse

General Specifications

Color Beige
Color, boot Black
Ferrule Geometry Factory polished
Interface MPO/UPC Female
Interface Feature Field Installable | Fusion splice | Unpinned
Total Fiber Count 12

Dimensions

Length 57.6 mm | 2.268 in
Compatible Cable Diameter 3 mm | 0.118 in

Material Specifications

Ferrule Material Polymer

Mechanical Specifications

Cable Retention Strength, maximum 11.24 lb @ 0 °

Optical Specifications

Fiber Mode Multimode
Fiber Type OM1
Insertion Loss Change, mating 0.3 dB
Optical Components Standard ANSI/TIA-568. 3-D
Insertion Loss Change, temperature 0.3 dB
Insertion Loss, maximum 0.35 dB
Insertion Loss, typical 0.1 dB
Return Loss, minimum 20 dB

Environmental Specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)

Packaging and Weights

Packaging quantity 2

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber connector
Product Brand OptiSPEED® | Qwik
Product Series Qwik-Fuse

General Specifications

Color Beige
Color, boot Black
Ferrule Geometry Factory polished
Interface MPO/UPC Female
Interface Feature Field Installable | Fusion splice | Unpinned
Total Fiber Count 12

Dimensions

Length 57.6 mm | 2.268 in
Compatible Cable Diameter 3 mm | 0.118 in

Material Specifications

Ferrule Material Polymer

Mechanical Specifications

Cable Retention Strength, maximum 11.24 lb @ 0 °

Optical Specifications

Fiber Mode Multimode
Fiber Type OM1
Insertion Loss Change, mating 0.3 dB
Optical Components Standard ANSI/TIA-568. 3-D
Insertion Loss Change, temperature 0.3 dB
Insertion Loss, maximum 0.35 dB
Insertion Loss, typical 0.1 dB
Return Loss, minimum 20 dB

Environmental Specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)

Packaging and Weights

Packaging quantity 2

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
