1967057-4

Base Product: D-CA

Available in:
Asia

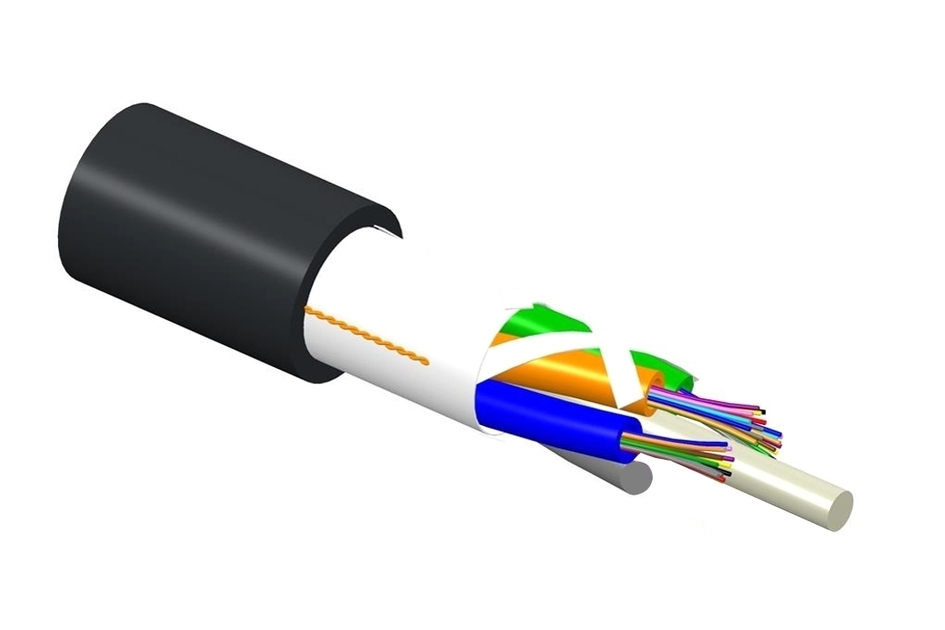

Outside Plant Fiber Optic Cable, armored, 12-fiber, Singlemode, OS2, loose tube, gel-filled, 2000 m

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product Classification

Regional Availability	Asia
Portfolio	CommScope®
Product Type	Fiber OSP cable
Product Series	D-CA

General Specifications

Armor Type	Electrolytic chrome-coated steel (ECCS) tape
Cable Type	Loose tube
Subunit Type	Gel-filled
Filler, quantity	3
Jacket Color	Black
Jacket Marking	Meters
Strength Members	E-glass yarns
Total Fiber Count	12

Dimensions

Cable Length	2000 m \| 6561.68 ft
Buffer Tube/Subunit Diameter	2.4 mm \| 0.094 in
Diameter Over Jacket	12.5 mm \| 0.492 in

Material Specifications

Jacket Material

High density polyethylene (HDPE)

Mechanical Specifications

Tensile Load, short term, maximum	4000 N \| 899.236 lbf
Cable Crush Resistance, maximum	40 N/mm \| 228.406 lb/in
Flex	25 cycles

Optical Specifications

Fiber Type

G.652.D | OS2

Optical Specifications, Wavelength Specific

Attenuation, maximum	0.22 dB/km @ 1,550 nm \| 0.34 dB/km @ 1,310 nm
Standards Compliance	TIA-492CAAB (OS2)

Environmental Specifications

Operating Temperature	-20 °C to +70 °C (-4 °F to +158 °F)
Jacket UV Resistance	UV stabilized

Packaging and Weights

Cable weight

160 kg/km | 107.515 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
