810010527/DB | R-002-IC-8H-F35IV/RNB

Base Product: O-DF

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

Indoor/Outdoor Riser 3.5mm Interconnect, dielectric, with 900um Buffers, 2-fiber, Singlemode G.657.B3,Gel-free, Feet jacket marking, Ivory jacket color

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Features and Benefits

*Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber drop cable
Government Requirements	Build America Buy America (BABA) compliant*

General Specifications

Cable Type	Drop
Construction Type	Non-armored
Subunit Type	Gel-free
Jacket Color	Ivory
Jacket Marking	Feet
Location of Manufacturing	Catawba, North Carolina \| Claremont, North Carolina
Total Fiber Count	2

Dimensions

Diameter Over Jacket

3.5 mm | 0.138 in

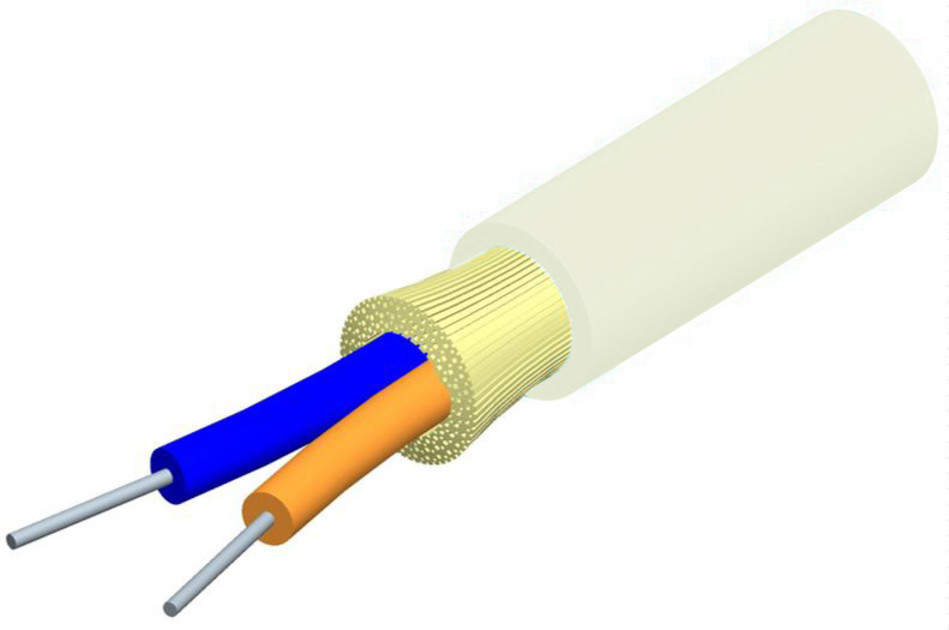

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material

PVC

Mechanical Specifications

Minimum Bend Radius, loaded	4 mm \| 0.157 in
Minimum Bend Radius, unloaded	4 mm \| 0.157 in
Tensile Load, long term, maximum	93 N \| 20.907 lbf
Tensile Load, short term, maximum	311 N \| 69.916 lbf
Compression	3.5 N/mm \| 19.986 lb/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex	300 cycles
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact	0.74 N-m \| 6.550 in lb
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7
Vertical Rise, maximum	500 m \| 1640.420 ft

Optical Specifications

Fiber Type

G.657.B3

Environmental Specifications

Installation temperature	-5 °C to +60 °C (+23 °F to +140 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards	ANSI/ICEA S-83-596
Environmental Space	Drop \| Indoor/Outdoor \| Riser \| Sunlight resistant
Flame Test Listing	NEC OFNR (ETL) and c(ETL) \| UL 1666
Flame Test Method	FT4 \| UL 1666
Jacket UV Resistance	UV stabilized
Water Penetration	24 h
Water Penetration Test Method	FOTP-82 \| IEC 60794-1 F5

Environmental Test Specifications

Low High Bend	0 °C to +60 °C (+32 °F to +140 °F)
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1

Packaging and Weights

Cable weight	12.54 kg/km \| 8.426 lb/kft
Packaging Type	Reel in box
