5519602 | QR® 715 JCAT Y

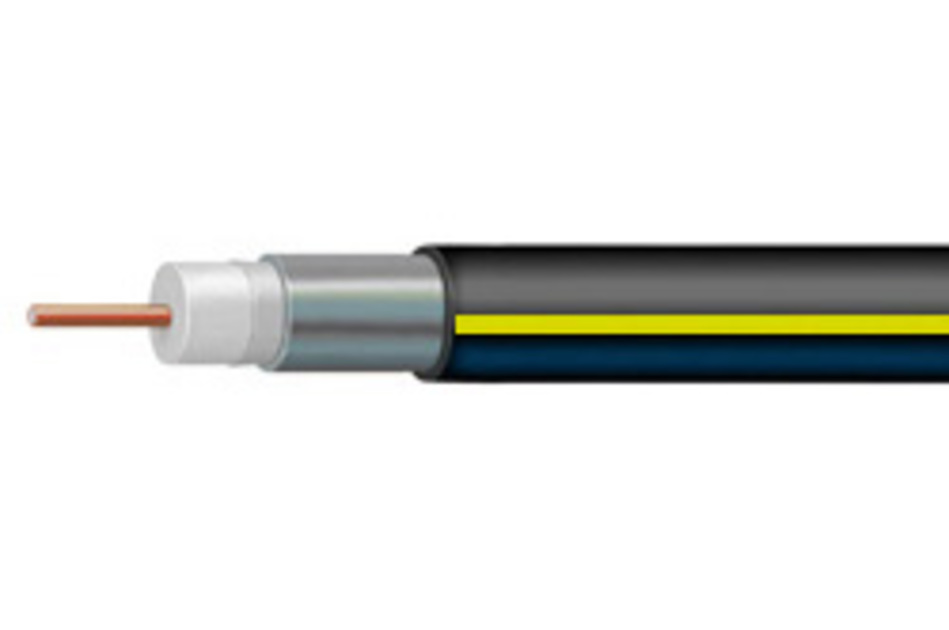

75 Ohm QR® Trunk and Distribution Cable, black PE jacket with co-extruded yellow stripe

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product Classification

Product Type	Coaxial hardline cable
Product Brand	QR®

Cable Type	715 Series
Construction Type	Welded
Jacket Color	Black with co-extruded yellow stripe
Short Description	QR 715 JCAT Y PR7344

Cable Length	914.4 m \| 3000 ft
Diameter Over Center Conductor, nominal	4.216 mm \| 0.166 in
Diameter Over Dielectric, nominal	17.424 mm \| 0.686 in
Diameter Over Jacket, nominal	19.939 mm \| 0.785 in
Diameter Over Outer Conductor, nominal	18.161 mm \| 0.715 in
Jacket Thickness, nominal	0.889 mm \| 0.035 in
Outer Conductor Thickness, nominal	0.368 mm \| 0.0145 in

Capacitance	50.197 pF/m \| 15.3 pF/ft
Capacitance Tolerance	±1.0 pF/ft
Characteristic Impedance	75 ohm
Characteristic Impedance Tolerance	±2 ohm
dc Resistance Note	Nominal values based on a standard condition of 20 °C (68 °F)
dc Resistance, Inner Conductor, nominal	1.903 ohms/km \| 0.58 ohms/kft
dc Resistance, Loop, nominal	3.281 ohms/km \| 1 ohms/kft
dc Resistance, Outer Conductor, nominal	1.378 ohms/km \| 0.42 ohms/kft
Jacket Spark Test Voltage	5000 Vac
Nominal Velocity of Propagation (NVP)	88 %
Operating Frequency Band	5–3000 MHz
Structural Return Loss	24 dB @ 1003–1218 MHz \| 24 dB @ 1219–1794 MHz \| 30 dB @ 5–1002 MHz
Structural Return Loss, Grade N	≥24 dB @ 1003–1218 MHz \| ≥24 dB @ 1219–1794 MHz \| ≥30 dB @ 5–1002 MHz

Minimum Bend Radius, bonded	127 mm \| 5 in
Pulling Tension, maximum	154.221 kg \| 340 lb

Environmental Space

Aerial

Packaging Type	Reel
Weight, gross	305.074 kg/km \| 205 lb/kft

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
