FGS-HETR-5/8-A

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

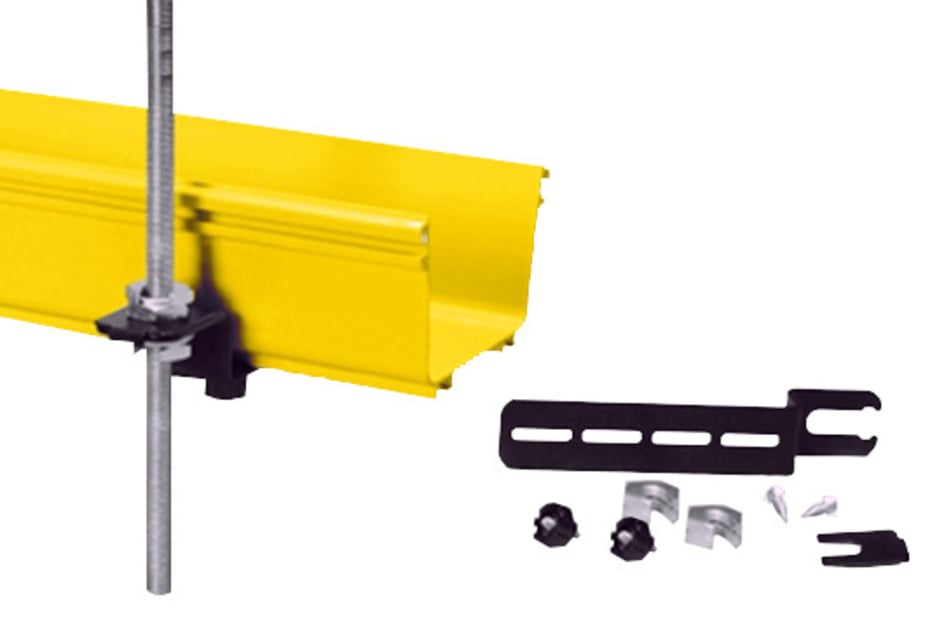

FiberGuide® Modified Existing Threaded Rod Bracket Kit, 5/8"in for 2x6, 4x4, 4x6in Systems

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

BABA-compliant
Build America Buy America (BABA)*

Rely on CommScope for Broadband Equity Access and Development (BEAD) Program and other government funded projects

Broadband for Everyone Program

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support mounting kit
Product Brand FiberGuide®
Product Series FGS

General Specifications

Color Black
Orientation Horizontal
Section Type Bracket
Bracket Type Cantilever
Bracket Installation Type Existing
Attachment Type Threaded rod

Dimensions

Height 156 mm | 6.142 in
Width 51 mm | 2.008 in
Length 274 mm | 10.787 in
Thread Size 5/8 in
System Dimensions 102 mm x 102 mm (4 in x 4 in) | 102 mm x 152 mm (4 in x 6 in) | 51 mm x 152 mm (2 in x 6 in)

Ordering Tree

Click on image to enlarge.

Packaging and Weights

Weight, net 0.718 kg | 1.583 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
