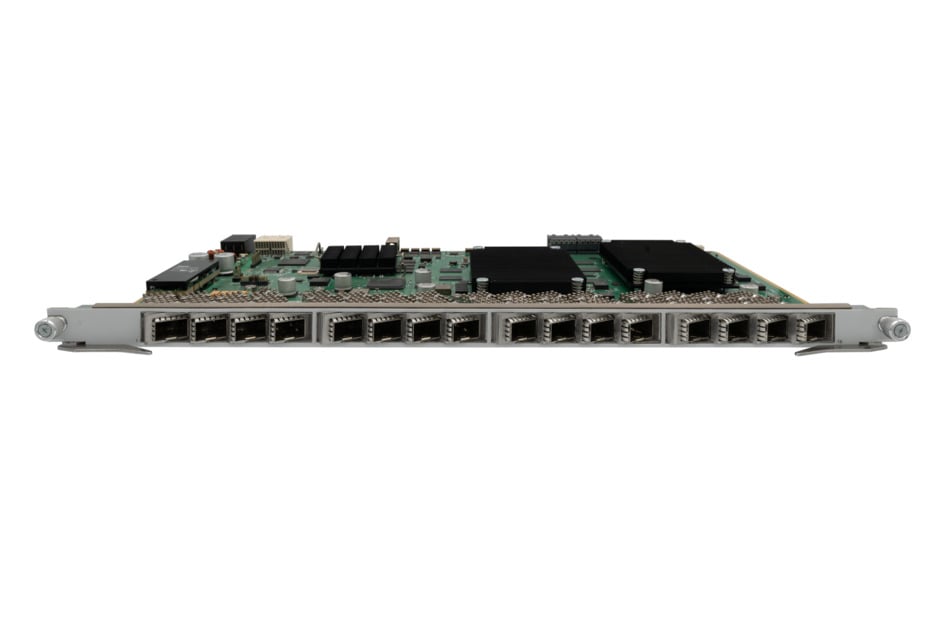

UC-GX16 | PON Evo™ UC-GX16 Multi-PON-Module (MPM) Line Card

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

16 Port Multi-PON-Module (MPM) Line Card

Specifications

Finish making your selections or clear them to view relevant specifications.

Get Connected to the Access Technologies Resource Center

Find manuals, quick guides, data sheets, videos and much more!

Explore Access Technologies Resource Center

Features and Benefits

CommScope’s PON Evo™ UC-GX16 is an ultra-high capacity, GPON/XGS-PON line card that is universally compatible with the PON Evo series Modular Optical Line Terminals (OLTs). The card features support for up to 16 Multi-PON-Module (MPM) ports, providing operators with the option to use the card for GPON, XGS-PON, or combo mode (GPON/ XGS-PON) operation. The UC-GX16 also supports advanced, dual-density SFP+ GPON/XGS-PON and B+, C+, and D optics to provide high-speed connectivity and maximize density.

Each UC-GX16 line card supports up to 2048 ONUs. The card is also compliant with ITU-T G.984 (GPON), ITU-T G.9807.1 (XGS-PON), and ITU-T G.988 (OMCI and ONU management) standards, providing operators with an excellent way to improve the performance of their current PON networks while laying the groundwork for future XGS-PON deployments.

Ultra-High Capacity:

16 Multi-PON-Module (MPM) ports
Supports dual-density SFP+ optics for up to 32 GPON or 32 XGS-PON ports per line card
Supports up to 2048 ONUs per line card
Up to 1:128 split ratio
