F-PB06

Base Product
  • Available in:
  • Asia
  • Australia/New Zealand
  • Latin America
  • North America

FibrBoss Wall Mounting Fiber Optic Box, outdoor

Configure Product Variants
Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of F-PB06 by selecting options

Loading...
Features and Benefits

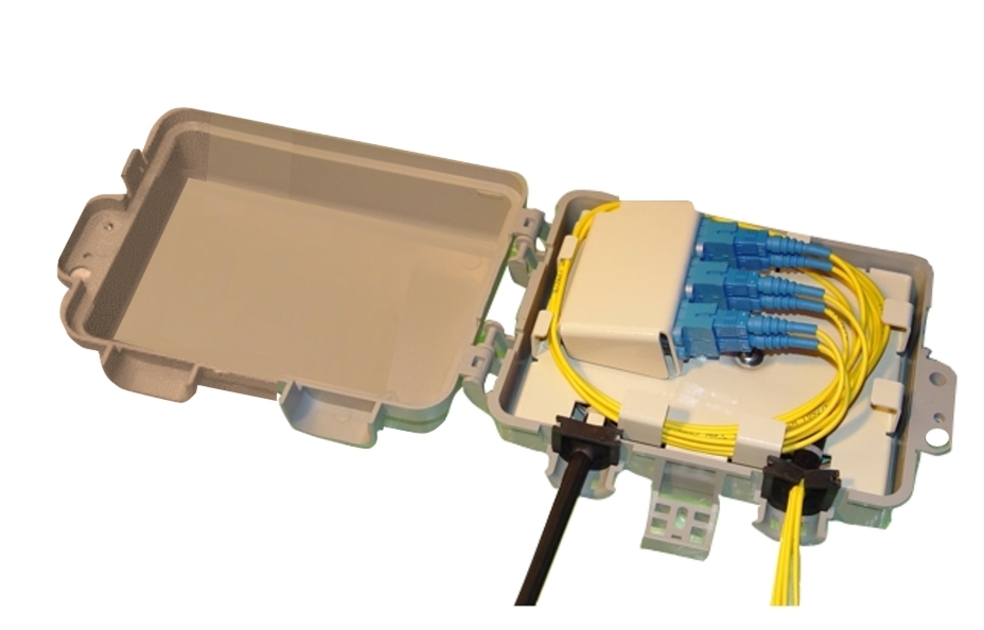

The FibrBoss PB06-B six-connector fiber premises box is intended to be used to patch and splice up to six fibers in an environmentally secure housing in an indoor or outdoor wall mounted application. Incoming fiber optic cables up to 10mm OD can be accommodated by this enclosure. This compact design includes a rugged plastic housing with a combination patching (top) and splicing (bottom) tray. The patching features of the tray include bend controls and integrated fiber retention clips for proper pigtail management. The splicing features of the tray include a covered fiber management tray for both fiber storage and splice storage. Cable retention brackets are integrated into the tray, and splice protection sleeves are included with the enclosure for added customer convenience and efficiency.

Features and benefits:
  • Intended as a small patch and splice or fiber “hands-off” enclosure
  • UL listed and UV resistant enclosure
  • Small size (4.8” x 6.4” x 2.4” interior dimensions)
  • Accommodates field supplied flat or round drop cable inputs
  • Accommodates field supplied cable and pigtail outputs
  • Fiber storage and splices integrated on one tray – tray cover included
  • Six position splice sleeve holder on tray
  • Six splice sleeves included
  • Mounting features for wall, pole, or pedestals
  • Optional security screw for the fiber tray for use as a demarcation enclosure (contact customer service)

Product Classification

Regional Availability Asia | Australia/New Zealand | Latin America | North America
Product Type Fiber wall box
Product Series PB06

General Specifications

Functionality Patching | Splicing
Access Front
Application For cables with outer diameter up to 10 mm: each on both sides
Enclosure Color Beige
Front Cover Type Hinged with lock
Interface LC/APC | LC/UPC
Lock Type Padlock ready
Mounting Pedestal | Pole | Wall

Dimensions

Height 121.92 mm | 4.800 in
Width 162.56 mm | 6.400 in
Depth 60.96 mm | 2.400 in

Ordering Tree

Click on image to enlarge.

Material Specifications

Enclosure Material Type LSZH thermoplastic

Environmental Specifications

Environmental Space Outdoor
Flammability Rating UL 94 V-0
Qualification Standards IEC 60529, IP65

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton

Product Classification

Regional Availability Asia | Australia/New Zealand | Latin America | North America
Product Type Fiber wall box
Product Series PB06

General Specifications

Functionality Patching | Splicing
Access Front
Application For cables with outer diameter up to 10 mm: each on both sides
Enclosure Color Beige
Front Cover Type Hinged with lock
Interface LC/APC | LC/UPC
Lock Type Padlock ready
Mounting Pedestal | Pole | Wall

Dimensions

Height 121.92 mm | 4.800 in
Width 162.56 mm | 6.400 in
Depth 60.96 mm | 2.400 in

Material Specifications

Enclosure Material Type LSZH thermoplastic

Environmental Specifications

Environmental Space Outdoor
Flammability Rating UL 94 V-0
Qualification Standards IEC 60529, IP65

Packaging and Weights

Packaging quantity 1
Packaging Type Box | Carton
