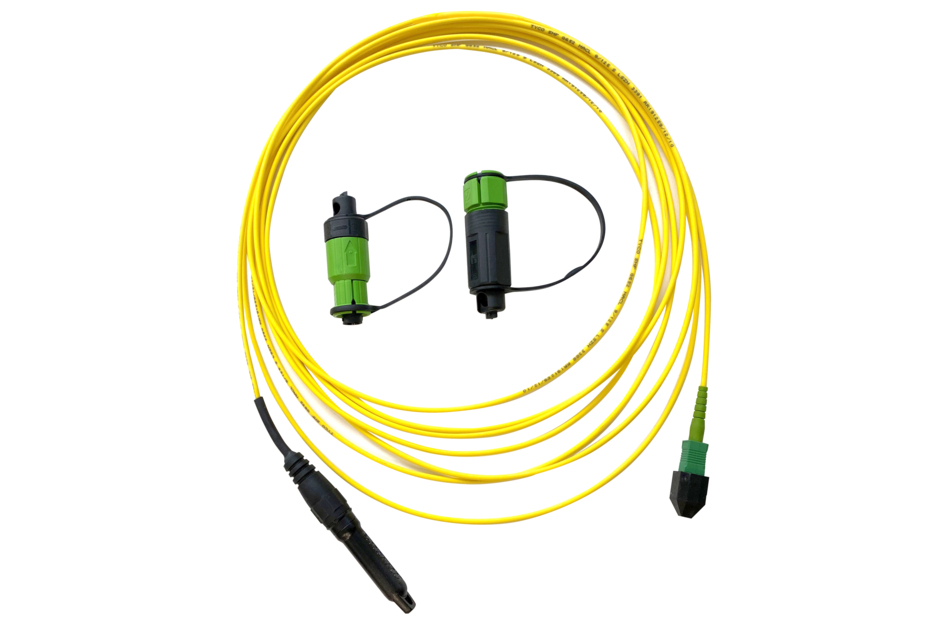

3mm Test lead. Prodigy + SC/APC termination. with Full size and Bayonet converter included
Features and Benefits
- Prodigy converters simplify installation and maintenance by reducing splicing requirements in the distribution portion of the network
Specifications
Product Classification
| Regional Availability | EMEA |
| Product Type | Fiber test patch cord |
| Product Brand | PRODIGY™ |
| Product Series | HCA |
General Specifications
| Color, boot A | Black |
| Color, connector A | Black |
| Color, connector B | Green |
| Interface, Connector A | Prodigy |
| Interface, Connector B | SC/APC |
| Jacket Color | Yellow |
Mechanical Specifications
| Dust Cap Pulling Force, minimum | 300 N | 67.443 lbf |
Optical Specifications
| Insertion Loss, maximum | 0.3 dB |
| Insertion Loss, typical | 0.15 dB |
| Return Loss, minimum | 65 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Indoor/Outdoor |
| Qualification Standards | IEC 60793 | IEC 60794 |
Product Classification
| Regional Availability | EMEA |
| Product Type | Fiber test patch cord |
| Product Brand | PRODIGY™ |
| Product Series | HCA |
General Specifications
| Color, boot A | Black |
| Color, connector A | Black |
| Color, connector B | Green |
| Interface, Connector A | Prodigy |
| Interface, Connector B | SC/APC |
| Jacket Color | Yellow |
Mechanical Specifications
| Dust Cap Pulling Force, minimum | 300 N | 67.443 lbf |
Optical Specifications
| Insertion Loss, maximum | 0.3 dB |
| Insertion Loss, typical | 0.15 dB |
| Return Loss, minimum | 65 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Indoor/Outdoor |
| Qualification Standards | IEC 60793 | IEC 60794 |
