60891121-02 | 6089 1 121-02

Base Product: LSA-PLUS-MODULES

  • Available in:
  • EMEA

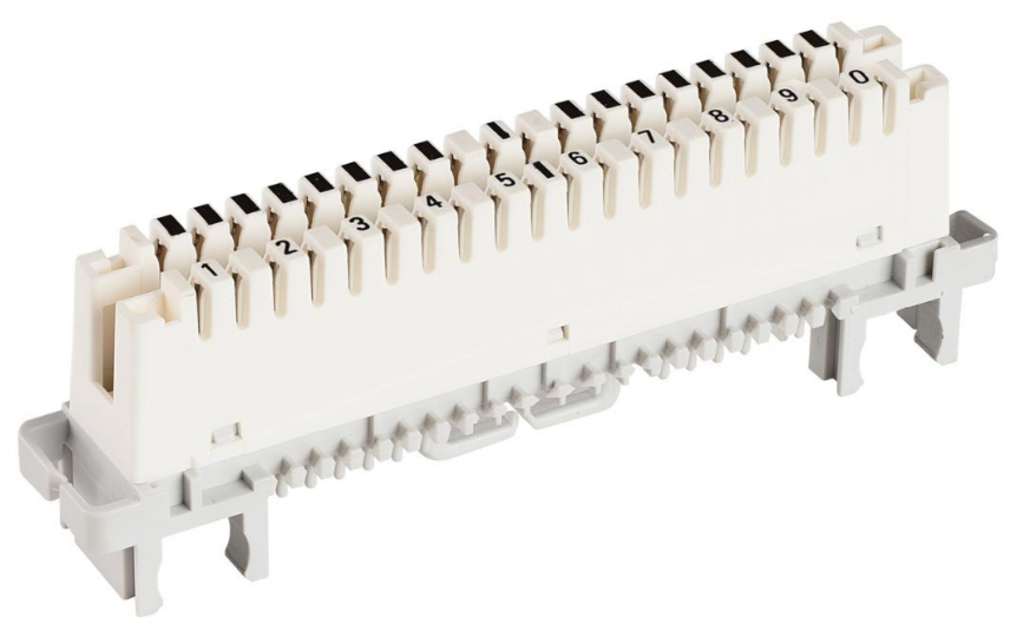

LSA-PLUS® Series 2 Disconnection Module, 10-pair, PROFIL mounting

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Based on genuine LSA-PLUS® connection technology for use in all xDSL and ADSL2+ circuits
  • Offer disconnection points for opening the line, testing in both directions or insertion of graded protection elements
  • Robust long-term environmental stability allows both indoor and outdoor installation
  • Compatible with accessories such as overvoltage protection magazines, labels, test and -connection cords

Product Classification

Regional Availability EMEA
Product Type Disconnection module
Product Brand LSA-PLUS®
Product Series LSA-PLUS Series 2

General Specifications

Color Beige
Mounting PROFIL rods
Pairs, quantity 10
Termination Punchdowns, minimum 200 times
Termination Tool LSA-PLUS Punchdown tool
Termination Type IDC

Dimensions

Width 124 mm | 4.882 in
Compatible Conductor Gauge, solid 26–20 AWG
Compatible Conductor Gauge, stranded 26–22 AWG

Electrical Specifications

Contact Resistance, maximum 1 mOhm
Current Rating, maximum 2 A
Dielectric Strength 3 kV
Insulation Resistance, minimum 50 GOhm

Material Specifications

Contact Base Material Brass
Contact Plating Material Silver
Material Type Polybutylene terephthalate (PBT)

Mechanical Specifications

Plug Insertion Life, minimum 250 times

Environmental Specifications

Operating Temperature -5 °C to +60 °C (+23 °F to +140 °F)
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Relative Humidity Up to 95%, non-condensing
Environmental Space Indoor | Outdoor
Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 10
Packaging Type Box | Carton

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
