Wellenlängenmultiplexer (Wavelength Division Multiplexing, WDM) und De-Multiplexer kombinieren mehrere Signale für den Transport auf einer einzigen Glasfaser und trennen die kombinierten Signale für die Verteilung an mehrere Ziele. Dadurch wird die auf Ihrer vorhandenen Glasfaser verfügbare Bandbreite erhöht. They can be applied in core and metro networks, transport networks, hybrid fiber cable (HFC) distributed access architectures and wireless transport, enabling true converged all optical IP communication.
WDM solutions require no power or additional fiber installation, making them quick and easy to install and maintain. The ITU.T has standardized wavelength channels in a Course and Dense WDM grid, offering a path to exploit the full optical spectrum in a single fiber, with the possibility to overlay signals, including coexistence of ethernet communications with PON technology.

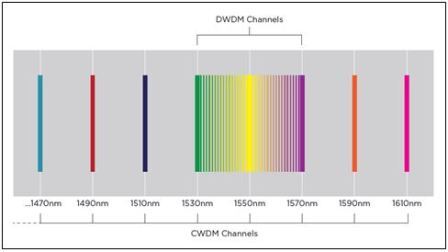

Coarse Wave Division Multiplexing (CWDM) is standardized to have 18 different wavelength channels with a spacing of 20 nanometers (nm) starting at 1270 nm and ending at 1610 nm. Most systems use the eight channels in the upper band (eight channels from 1470 nm to 1610 nm). The advantage of CWDM systems is that it is always possible to upgrade at a later point in time to limit the installation cost on day one. The wider channel spacing places less stringent requirements on the lasers, which allows use of less expensive lasers without temperature controllers.
Dense Wave Division Multiplexing (DWDM) devices are mostly used in the core networks to extend over very long distances and where more wavelengths are required between sites. The 40 wavelength channels are distributed in the C-band from 1530 nm to 1570 nm. If required, DWDM can be “over-layed” on a CWDM infrastructure to increase capacity.

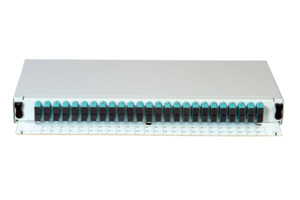

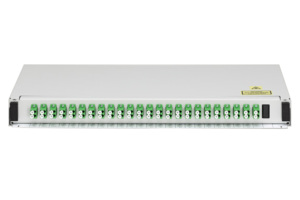

CommScope’s WDM portfolio includes a variety of form factors, optimal for a wide range of inside plant (ISP) and outside plant (OSP) applications. For example, CommScope’s LGX or NG4 ISP Multiplexing Modules can be used in the headend or central office facility to multiplex signals. They can be paired with FOSC or FIST fiber optic closures containing the matching De-mux modules, or use add-drop solutions optimal for daisy chaining.
With CommScope’s WDM, operators can:
- Support high-speed, high-capacity throughput with low latency
- Improve quality of service
- Make the most out of their fiber investments, for fixed and mobile access, optical transport
- Deploy GPON, CPRI and Ethernet traffic on the same network or fiber strand
- Migrate easily from 1G to 100G, 400G and higher – using latest technologies such as coherent optic transceiver technology
Products
-
Herunterladen
Broschüre: OCC1D – Einzelne Kanäle hinzufügen/ablegen
Im Außenbereich installierbare Geräte für Dense Wavelength Division Multiplexing (optisches Wellenlängen-Multiplexing)
-
Herunterladen
Spezifikationsleitfaden: DWDM – Dichte Wellenlängen-Multiplex Verfahren
Die DWDM (Dichte Wellenlängen-Multiplex Verfahren)-Geräte von CommScope unterstützen Upgrades der Netzwerkleistung und erhöhen die Bandbreite, die für Ihre bestehende Glasfasernetzwerk-Infrastruktur verfügbar ist.
-
Herunterladen
Whitepaper: WDM-Technologien der nächsten Generation
WDM-Technologien der nächsten Generation bieten Auswahlmöglichkeiten, um steigende Bandbreitenanforderungen zu erfüllen.
