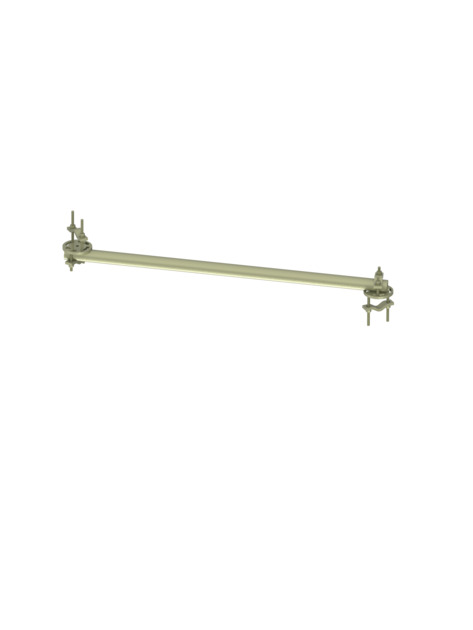

SKA-TBK | PIM-GUARD MONOPOLE PLATFORM SKEW FIGHTER TIE-BACK

Base Product: PIM-GUARD-MOUNTS

Tie-Back Kit for PIM-Guard Skew Fighter (860678540)

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
SKA-TBK
Features and Benefits
-Optional Tie-back kit to add additional structural support to the PIM-Guard Skew Fighter for Monopole Platforms (860678540)

Product Classification

Product Type Support kit
Product Brand PIM-guard

General Specifications

Mounting Round member

Dimensions

Pipe Length 1524.000 mm | 60 in
Mounting Diameter, maximum 88.900 mm | 3.5 in
Mounting Diameter, minimum 60.325 mm | 2.375 in
Pipe Outer Diameter 60.325 mm | 2.375 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and Weights

Included Mounting hardware | Supports
Packaging quantity 1
Weight, net 13.689 kg | 30.18 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product Classification

Product Type Support kit
Product Brand PIM-guard

General Specifications

Mounting Round member

Dimensions

Pipe Length 1524.000 mm | 60 in
Mounting Diameter, maximum 88.900 mm | 3.5 in
Mounting Diameter, minimum 60.325 mm | 2.375 in
Pipe Outer Diameter 60.325 mm | 2.375 in

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and Weights

Included Mounting hardware | Supports
Packaging quantity 1
Weight, net 13.689 kg | 30.18 lb

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
