760240957 | Pole Cab, 30 in Sq, 4G/5G

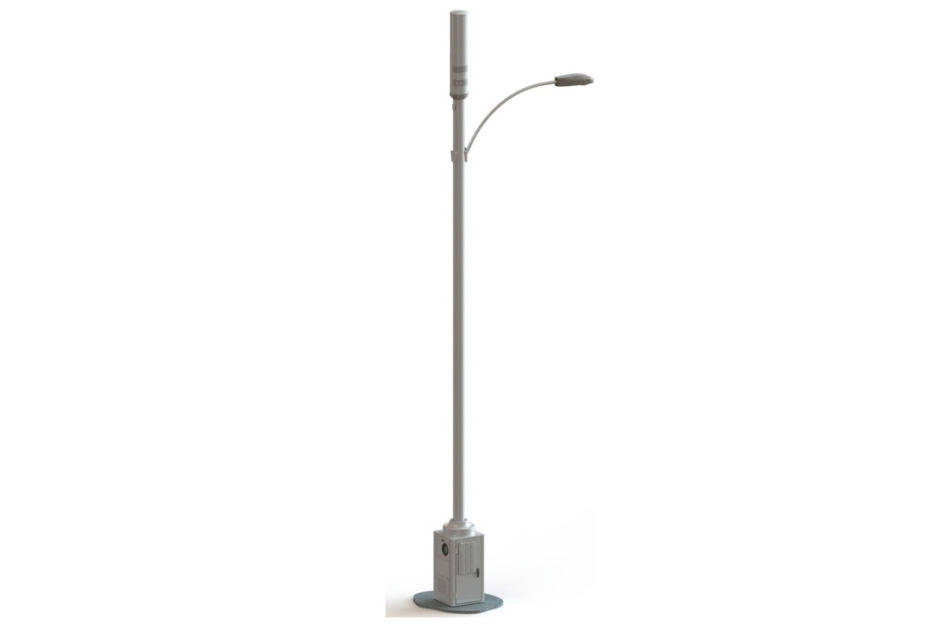

Bottom of the Pole, 30in Square 4G/5G capable Concealment Enclosure to house and conceal multiple low to high power radios and any other wireless infrastructure equipment in a cabinet at the base of the pole.
Specifications
Finish making your selections or clear them to view relevant specifications.
View Download
How to Buy
Features and Benefits
  • Intended to house and conceal multiple radios and any other wireless infrastructure equipment in a cabinet at the base of the pole
  • Pole top concealment module for LAA/CBRS radio mounting
  • Flexible configuration accepts low to high-power single or dual band radios, Integrated AC load center/OVP and Disconnect and integrated AC/DC rectifier options
Specifications

Product Classification

Product Type Metro cell site enclosure

General Specifications

Color Light Grey (RAL 7035)
Color Notes 760240957AB1HH - Light Grey | 760240957AB2HH - Green | 760240957AB3HH - Black | 760240957AB4HH - Brown | 760240957AB5HH - Beige-Grey | 760240957AB9HH - Metallic Silver | 760240957ABCHH - Faux Concrete | 760240957ABWHH - Pure White
Color Options Beige-Grey (RAL 7006) | Black | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | Pure White
Cooling Fan Cooling
Radio Compatibility, Ericsson (2) 8843/4449 Dual-Band High Power Radio and (4) PSU-AC08 | (2) RRUS11/12/32, 2212, 4415, 4426, 4478 | (3) 2203/2205/2208 (Pole Top) | 5G Expansion module included | 760240957E
Radio Compatibility, Nokia (2) Airscale dual band radios (160W or 320W and (2) Delta 1kW rectifiers (base) | (2) Airscale micro radios – LAA & CBRS (Pole Top) | 5G Expansion module included | 760240957N
Radios Included None

Dimensions

Height Note 4 ft tall Equipment Cabinet Base
Pole Height Options 6.096 m | 20 ft | 7.62 m | 25 ft | 9.144 m | 30 ft | 10.668 m | 35 ft | 12.192 m | 40 ft
Depth 762 mm | 30 in
Depth Note Square
Pole Diameter 203.2 mm | 8 in

Electrical Specifications

Power/Fiber Input AC load center with OVP and disconnect

Material Specifications

Finish Aluminum Chromate
Finish Concealment Covers Powder coated
Material Type Steel

Environmental Specifications

Thermal Compliance GR-487

Product Classification

Product Type Metro cell site enclosure

General Specifications

Color Light Grey (RAL 7035)
Color Notes 760240957AB1HH - Light Grey | 760240957AB2HH - Green | 760240957AB3HH - Black | 760240957AB4HH - Brown | 760240957AB5HH - Beige-Grey | 760240957AB9HH - Metallic Silver | 760240957ABCHH - Faux Concrete | 760240957ABWHH - Pure White
Color Options Beige-Grey (RAL 7006) | Black | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | Pure White
Cooling Fan Cooling
Radio Compatibility, Ericsson (2) 8843/4449 Dual-Band High Power Radio and (4) PSU-AC08 | (2) RRUS11/12/32, 2212, 4415, 4426, 4478 | (3) 2203/2205/2208 (Pole Top) | 5G Expansion module included | 760240957E
Radio Compatibility, Nokia (2) Airscale dual band radios (160W or 320W and (2) Delta 1kW rectifiers (base) | (2) Airscale micro radios – LAA & CBRS (Pole Top) | 5G Expansion module included | 760240957N
Radios Included None

Dimensions

Height Note 4 ft tall Equipment Cabinet Base
Pole Height Options 6.096 m | 20 ft | 7.62 m | 25 ft | 9.144 m | 30 ft | 10.668 m | 35 ft | 12.192 m | 40 ft
Depth 762 mm | 30 in
Depth Note Square
Pole Diameter 203.2 mm | 8 in

Electrical Specifications

Power/Fiber Input AC load center with OVP and disconnect

Material Specifications

Finish Aluminum Chromate
Finish Concealment Covers Powder coated
Material Type Steel

Environmental Specifications

Thermal Compliance GR-487
