760250291 | P-004-DS-HY-8W-F29YL/4X12AWG
- Available in:
- North America
TeraSPEED® Plenum Hybrid Distribution Cable, 4 simplex single fiber, 4 conductor 12 AWG
Specifications
Product Classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Hybrid cable, copper and fiber |
| Product Brand | TeraSPEED® |
General Specifications
| Cable Type | Distribution | Hybrid | Stranded indoor |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 4 |
| Construction Type | Non-armored |
| Fiber Short Description | P-001-SP29 |
| Subunit Type | Gel-free |
| Filler, quantity | 0 |
| Jacket Color | Yellow |
| Subunit Jacket Color | Yellow |
| Subunit, quantity | 4 |
| Fibers per Subunit, quantity | 1 |
| Total Fiber Count | 4 |
Dimensions
| Buffer Tube/Subunit Diameter | 2.794 mm | 0.11 in |
| Diameter Over Jacket | 12.192 mm | 0.48 in |
| Conductor Gauge | 12 AWG |
Electrical Specifications
| Conductor dc Resistance | 5.413 ohms/km | 1.65 ohms/kft |

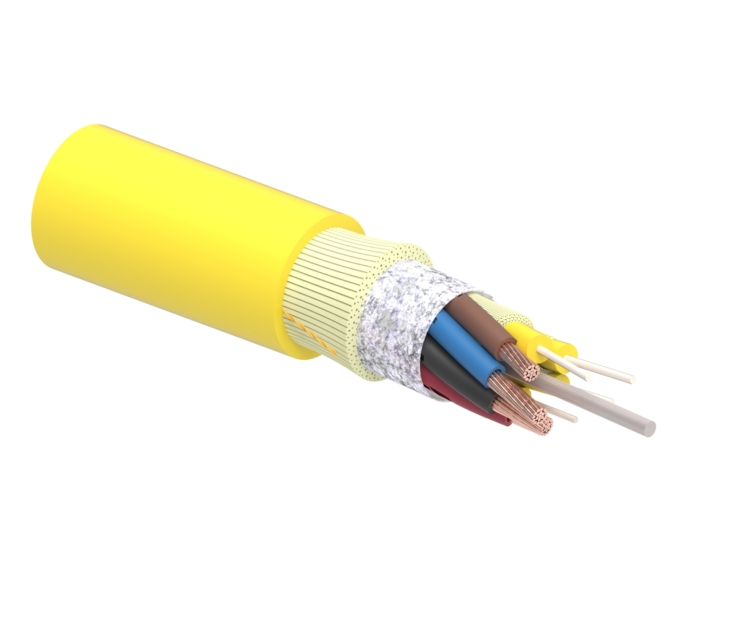

Representative Image
| Click on image to enlarge. |
Material Specifications
| Conductor Material | Bare copper | Stranded copper wire |
| Insulation Material, singles | PVC |
| Jacket Material | Fire retardant PVC |
| Ripcord Material | Polyester |
Mechanical Specifications
| Minimum Bend Radius, loaded | 199.898 mm | 7.87 in |
| Minimum Bend Radius, unloaded | 199.898 mm | 7.87 in |
| Tensile Load, long term, maximum | 467.063 N | 105 lbf |
| Tensile Load, short term, maximum | 1552.429 N | 349 lbf |
| Compression | 1.018 kg/mm | 57 lb/in |
| Compression Test Method | FOTP-41 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 |
| Impact | 2.942 N-m | 2.17 ft lb |
| Impact Test Method | FOTP-25 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 |
| Vertical Rise, maximum | 171.420 m | 562.4 ft |
Optical Specifications
| Fiber Type | G.652.D and G.657.A1, TeraSPEED® |
Environmental Specifications
| Installation temperature | -0 °C to +70 °C (-32 °F to +158 °F) |
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-83-596 | Telcordia GR-409 | UL 13 | UL 444 |
| Environmental Space | Plenum | Wireless installation |
| Flame Test Listing | NEC CL3P-OF (ETL) and c(ETL) | NEC CMP-OF (ETL) and c(ETL) |
| Flame Test Method | NFPA 262 |
Environmental Test Specifications
| Low High Bend | 0 °C to +70 °C (+32 °F to +158 °F) |
| Low High Bend Test Method | FOTP-37 |
| Temperature Cycle | 0 °C to +70 °C (+32 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 |
Packaging and Weights
| Cable weight | 277.840 kg/km | 186.7 lb/kft |
Product Classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Hybrid cable, copper and fiber |
| Product Brand | TeraSPEED® |
General Specifications
| Cable Type | Distribution | Hybrid | Stranded indoor |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 4 |
| Construction Type | Non-armored |
| Fiber Short Description | P-001-SP29 |
| Subunit Type | Gel-free |
| Filler, quantity | 0 |
| Jacket Color | Yellow |
| Subunit Jacket Color | Yellow |
| Subunit, quantity | 4 |
| Fibers per Subunit, quantity | 1 |
| Total Fiber Count | 4 |
Dimensions
| Buffer Tube/Subunit Diameter | 2.794 mm | 0.11 in |
| Diameter Over Jacket | 12.192 mm | 0.48 in |
| Conductor Gauge | 12 AWG |
Electrical Specifications
| Conductor dc Resistance | 5.413 ohms/km | 1.65 ohms/kft |
Material Specifications
| Conductor Material | Bare copper | Stranded copper wire |
| Insulation Material, singles | PVC |
| Jacket Material | Fire retardant PVC |
| Ripcord Material | Polyester |
Mechanical Specifications
| Minimum Bend Radius, loaded | 199.898 mm | 7.87 in |
| Minimum Bend Radius, unloaded | 199.898 mm | 7.87 in |
| Tensile Load, long term, maximum | 467.063 N | 105 lbf |
| Tensile Load, short term, maximum | 1552.429 N | 349 lbf |
| Compression | 1.018 kg/mm | 57 lb/in |
| Compression Test Method | FOTP-41 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 |
| Impact | 2.942 N-m | 2.17 ft lb |
| Impact Test Method | FOTP-25 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 |
| Vertical Rise, maximum | 171.420 m | 562.4 ft |
Optical Specifications
| Fiber Type | G.652.D and G.657.A1, TeraSPEED® |
Environmental Specifications
| Installation temperature | -0 °C to +70 °C (-32 °F to +158 °F) |
| Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-83-596 | Telcordia GR-409 | UL 13 | UL 444 |
| Environmental Space | Plenum | Wireless installation |
| Flame Test Listing | NEC CL3P-OF (ETL) and c(ETL) | NEC CMP-OF (ETL) and c(ETL) |
| Flame Test Method | NFPA 262 |
Environmental Test Specifications
| Low High Bend | 0 °C to +70 °C (+32 °F to +158 °F) |
| Low High Bend Test Method | FOTP-37 |
| Temperature Cycle | 0 °C to +70 °C (+32 °F to +158 °F) |
| Temperature Cycle Test Method | FOTP-3 |
Packaging and Weights
| Cable weight | 277.840 kg/km | 186.7 lb/kft |
