760170498 | P-012-LZ-HY-F12BK/25D/8W012/4X14AWG

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

TeraSPEED® Single Jacket All-Dielectric Indoor/Outdoor Cable + Copper Conductor(s)

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Hybrid cable, copper and fiber
Product Brand	TeraSPEED®

General Specifications

Cable Type	Stranded loose tube
Conductors, quantity	4
Construction Type	Armored
Fiber Short Description	P-048-LZ-HY-F12BK/25D/XYXXX/NX14AWG
Subunit Type	Gel-free
Filler, quantity	0
Jacket Color	Black
Subunit, quantity	1
Fibers per Subunit, quantity	12
Total Fiber Count	12

Dimensions

Buffer Tube/Subunit Diameter	2.54 mm \| 0.1 in
Diameter Over Jacket	17.78 mm \| 0.7 in
Conductor Gauge	14 AWG

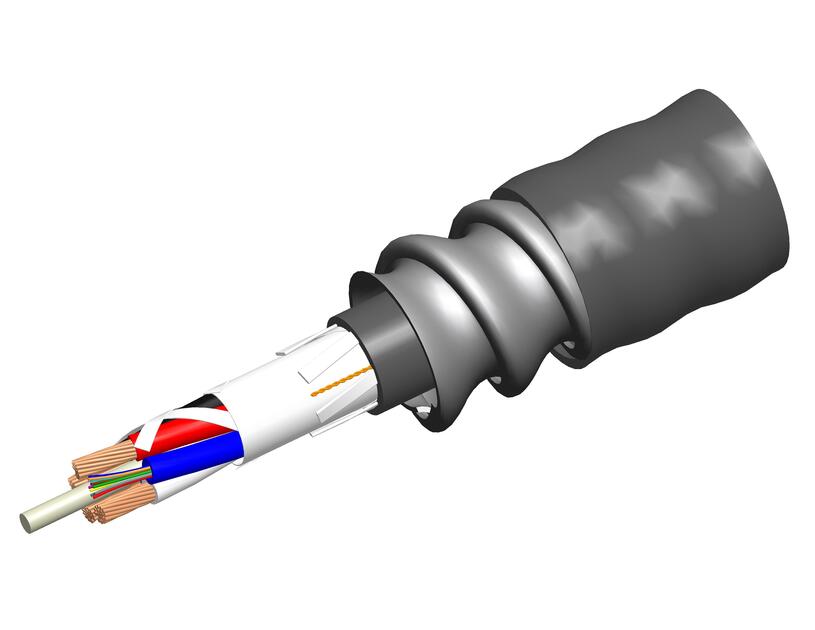

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	358.14 mm \| 14.1 in
Minimum Bend Radius, unloaded	251.46 mm \| 9.9 in
Tensile Load, long term, maximum	400.34 N \| 90 lbf
Tensile Load, short term, maximum	1334.466 N \| 300 lbf
Compression	8.625 kg/mm \| 483 lb/in
Compression Test Method	FOTP-41 \| IEC 60794-1 E3
Flex	25 cycles
Flex Test Method	FOTP-104 \| IEC 60794-1 E6
Impact	2.942 N-m \| 2.17 ft lb
Impact Test Method	FOTP-25 \| IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1 E1
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1 E7
Vertical Rise, maximum	115.824 m \| 380 ft

Optical Specifications

Fiber Type

G.652.D and G.657.A1, TeraSPEED® | OS2 | OS2

Environmental Specifications

Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Cable Qualification Standards	ANSI/ICEA S-104-696 \| EN 187105 \| Telcordia GR-409
Environmental Space	Aerial, lashed \| Buried \| Plenum \| Wireless installation
Flame Test Listing	NEC CMP-OF (ETL) and c(ETL)
Flame Test Method	NFPA 262
Jacket UV Resistance	UV stabilized
Water Penentration	24 h
Water Penentration Test Method	FOTP-82 \| IEC 60794-1 F5

Environmental Test Specifications

Cable Freeze	-2 °C \| 28.4 °F
Cable Freeze Test Method	FOTP-98
Drip	70 °C \| 158 °F
Drip Test Method	FOTP-81 \| IEC 60794-1 E14
Heat Age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Low High Bend	-30 °C to +60 °C (-22 °F to +140 °F)
Low High Bend Test Method	FOTP-37 \| IEC 60794-1 E11
Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1 F1

Packaging and Weights

Cable weight

352.695 kg/km | 237 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS	Compliant
