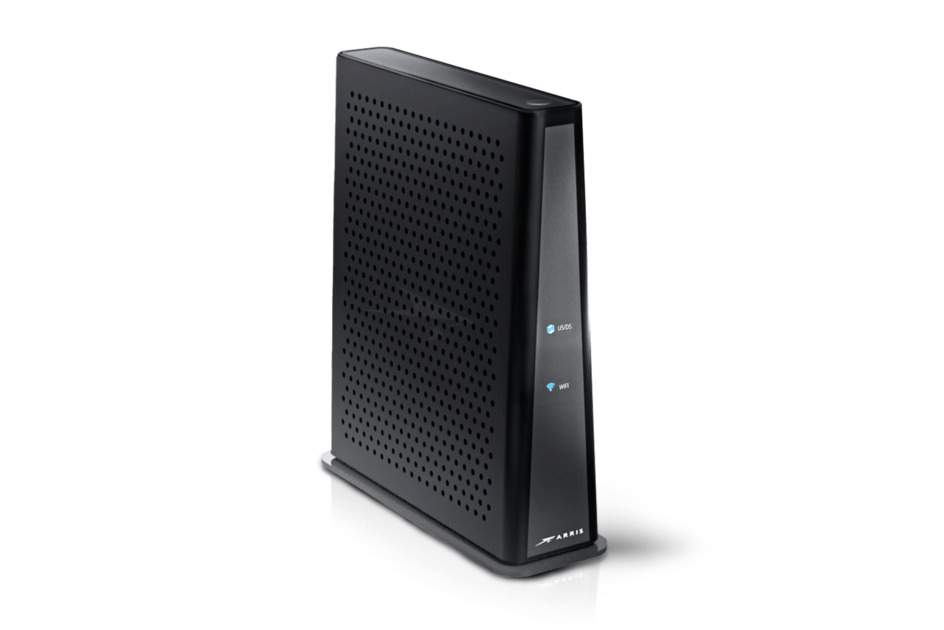

DG3450 | Touchstone® DG3450 Cable Gateway

  • Available in:
  • North America

DOCSIS® 3.1 Cable Gateway with 802.11ac Wi-Fi & MoCA®2.0

Specifications
Finish making your selections or clear them to view relevant specifications.
View
How to Buy
Features and Benefits
The Touchstone DG3450 is a DOCSIS 3.1 home gateway supporting 2x192 MHz OFDM in the downstream and 2x96MHz OFDMA in the upstream along with 32x8 channel bonding for up to 2.5 Gbps of broadband data. It combines a 4-port gigabit router and a dual band 802.11n and 802.11ac Wave2 wireless access point with battery back-up into a single integrated device.

The DG3450 serves as the hub of service delivery in the subscriber’s home; providing high-speed data and IP video to wired and wireless connected devices. The device is optimized for providing Gigabit data services over DOCSIS 3.1 WAN.
  • Supports RDK-B based router stack
  • Allows custom designed setups to be applied to monitor the end user more efficiently with multiple provisioning methods (SNMP, configuration file, remote web GUI access, TFTP, and TR-069)
  • Flexibility of configuration and control with multiple local and remote access levels (user, admin, etc.)
  • Support for full 8 hours or 24 hours standby support with the same base unit
Specifications

Product Classification

Regional Availability North America

General Specifications

Access Technology DOCSIS 3.1
Channel Bonding Up to 32x8 SC-QAM, 2x2 OFDM/A
Diagnostic LEDs 2.4GHz | 5GHz | Battery | Integrated LED for status of Power | MoCA | Online | US/DS
Ethernet Ports 4 x GigE
Interfaces 4 x 10/100/1000 Base-T Ethernet (RJ45 connector) | AC-DC External | External ‘F’ type connector
MoCA MoCA 2.0
RF Downstream Frequency Range 108–1002 MHz
RF Downstream Bonded Channels, quantity Up to 32 SCQAM or 2 OFDM
RF Downstream Input Sensitivity Level -15 dBmV to 15 dBmV
RF Downstream Data Rate Up to 5 Gb/s
RF Upstream Frequency Range Switchable 5–42 MHz or 5–85 MHz
RF Upstream Bonded Channels, quantity Up to 8 SCQAM or 2 OFDMA
RF Upstream Output Level 57 dBmv (64 QAM, 4-8 upstreams) | 65 dBmV (16 QAM, single upstream) | 65 dBmV (64 QAM, single upstream)
RF Upstream Data Rate Up to 1 Gb/s
Software RDK-B, Dual Stack IPv4/IPv6 Home Router, Static and Dynamic IP, DHCP, NAT, L2TP, VLAN’s and RIP, PacketCable 1.5, 2.0
Type Gateway
USB USB 3.1
Voice No
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac Wave2
Wi-Fi Band 2.4 GHz | 5 GHz
Wi-Fi Interface Standard at 2.4 GHz 3x3, 802.11n
Wi-Fi Interface Standard at 5 GHz 4x4, 802.11ac

Dimensions

Height 236.982 mm | 9.33 in
Width 72.898 mm | 2.87 in
Length 203.2 mm | 8 in

Environmental Specifications

Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)

Packaging and Weights

Weight, net 0.88 kg | 1.94 lb

Product Classification

Regional Availability North America

General Specifications

Access Technology DOCSIS 3.1
Channel Bonding Up to 32x8 SC-QAM, 2x2 OFDM/A
Diagnostic LEDs 2.4GHz | 5GHz | Battery | Integrated LED for status of Power | MoCA | Online | US/DS
Ethernet Ports 4 x GigE
Interfaces 4 x 10/100/1000 Base-T Ethernet (RJ45 connector) | AC-DC External | External ‘F’ type connector
MoCA MoCA 2.0
RF Downstream Frequency Range 108–1002 MHz
RF Downstream Bonded Channels, quantity Up to 32 SCQAM or 2 OFDM
RF Downstream Input Sensitivity Level -15 dBmV to 15 dBmV
RF Downstream Data Rate Up to 5 Gb/s
RF Upstream Frequency Range Switchable 5–42 MHz or 5–85 MHz
RF Upstream Bonded Channels, quantity Up to 8 SCQAM or 2 OFDMA
RF Upstream Output Level 57 dBmv (64 QAM, 4-8 upstreams) | 65 dBmV (16 QAM, single upstream) | 65 dBmV (64 QAM, single upstream)
RF Upstream Data Rate Up to 1 Gb/s
Software RDK-B, Dual Stack IPv4/IPv6 Home Router, Static and Dynamic IP, DHCP, NAT, L2TP, VLAN’s and RIP, PacketCable 1.5, 2.0
Type Gateway
USB USB 3.1
Voice No
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac Wave2
Wi-Fi Band 2.4 GHz | 5 GHz
Wi-Fi Interface Standard at 2.4 GHz 3x3, 802.11n
Wi-Fi Interface Standard at 5 GHz 4x4, 802.11ac

Dimensions

Height 236.982 mm | 9.33 in
Width 72.898 mm | 2.87 in
Length 203.2 mm | 8 in

Environmental Specifications

Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)

Packaging and Weights

Weight, net 0.88 kg | 1.94 lb
