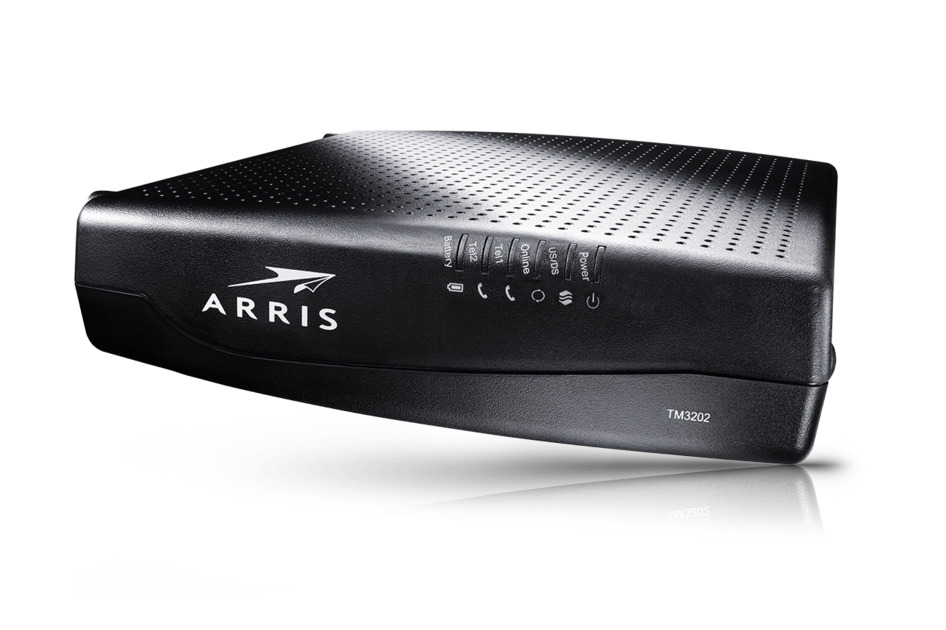

TM3202 | Touchstone® TM3202 E-MTA

  • Available in:
  • North America
32x8 DOCSIS® 3.0 Modem (E-MTA) with 2 voice ports
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
The Touchstone® TM3202 DOCSIS® 3.0 32x8 Embedded Multimedia Terminal Adaptor (E-MTA) delivers two lines of primary line Voice over IP (VoIP), up to 1.2 Gigabit per second high speed data access, and multiple battery pack options to support telephony service during power outages.

Designed as a customizable solution for advanced users, the TM3202 enables both home and small businesses the speed and performance achievable with 16x4, 24x8, or 32x8 bonded channels, along with industry-leading ARRIS voice and battery back-up features. With the TM3202, cable operators can maintain competitive position against VDSL and fiber to the home services by offering subscriber data services as high as 1.2 Gbps.
Specifications

Product Classification

Regional Availability North America

General Specifications

Access Technology DOCSIS 3.0
Channel Bonding Up to 32x8 SC-QAM
Diagnostic LEDs Battery | Ethernet Link/Speed | Online | Power | Tel1 | Tel2 | US/DS
Ethernet Ports 1 x GigE
Interfaces 10/100/1000 Base-T Ethernet (RJ45 connector) | 2 mm Battery Connector (3202G only) | 2 x RJ11 jacks | External ‘F’ type connector
RF Downstream Bonded Channels, quantity Up to 32
RF Downstream Data Rate Up to 1000 Mb/s
RF Downstream Frequency Range 108–1002 MHz
RF Downstream Input Sensitivity Level -15 dBmV to 15 dBmV
RF Upstream Bonded Channels, quantity Up to 8
RF Upstream Data Rate Up to 240 Mb/s
RF Upstream Frequency Range 5-85 MHz (3202A only) | 5–42 MHz
Type Modem
Voice Yes
Voice Ports, quantity 2

Dimensions

Height 180.34 mm | 7.1 in
Width 45.72 mm | 1.8 in
Length 180.34 mm | 7.1 in

Electrical Specifications

Voltage, ac 115 V

Environmental Specifications

Standards Compliance DOCSIS 3.0 Certified | Enhanced codecs: G.722, G.726, G.728, G.729E | FCC Part 15 Class B / ICES-003 | G.711, 64 kb/s, μ-law and A-law encoded speech | IEEE 802.3, 802.3ab | ITU-T K.21 | PacketCable 1.0, 1.5 and 2.0 Compliant | RFC3261 Legacy SIP | RoHS, WEEE | T.38 Fax Relay | Telcordia™ GR-1089 Lightning/Surge | Telcordia™ GR-63 NEBS | UL® 60950 / CB

Packaging and Weights

Weight, net 0.503 kg | 1.11 lb
