RZVV-65B-R4
8-port sector antenna, 2x 694–960, 2x 1427-2690 and 4x 1695–2690 MHz, 65° HPBW, 4x RET
Specifications
Features and Benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
Specifications
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 8 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (3) | Low band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 395 mm | 15.551 in |
| Depth | 203 mm | 7.992 in |
| Length | 1980 mm | 77.953 in |
| Net Weight, without mounting kit | 29.4 kg | 64.816 lb |
Array Layout
| Click on image to enlarge. |

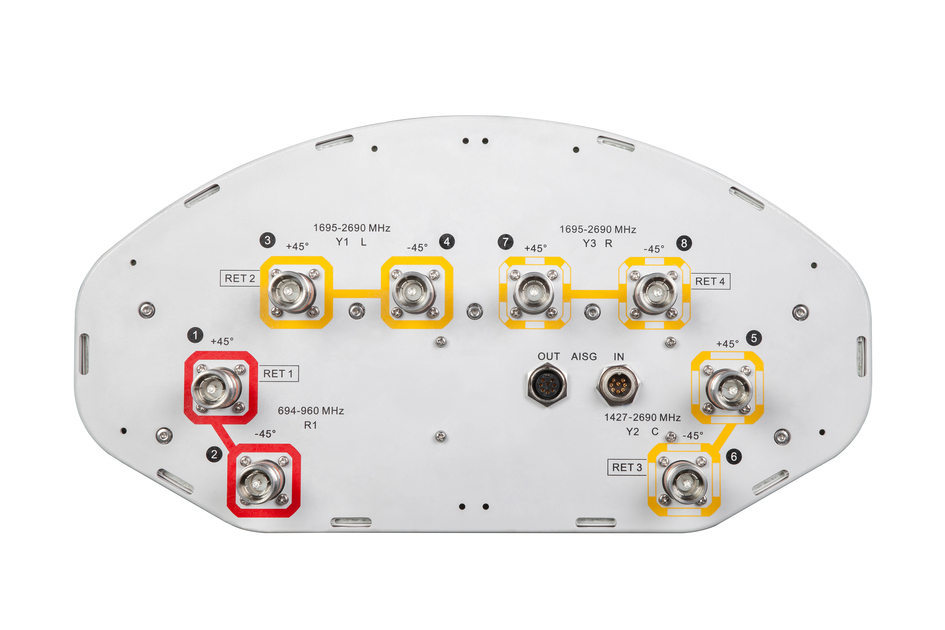

Port Configuration
| Click on image to enlarge. |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 694–790 | 790–862 | 880–960 | 1427–1518 | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 14.7 | 15.2 | 15.3 | 16.1 | 17.3 | 18.4 | 18.9 | 18.7 |
| Beamwidth, Horizontal, degrees | 73 | 71 | 70 | 67 | 69 | 64 | 56 | 54 |
| Beamwidth, Vertical, degrees | 12.1 | 11 | 10.1 | 7 | 5.9 | 5.2 | 4.5 | 4.3 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 14 | 15 | 14 | 19 | 18 | 17 | 15 | 14 |
| Front-to-Back Ratio at 180°, dB | 34 | 36 | 32 | 29 | 34 | 33 | 33 | 30 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 250 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 694–790 | 790–862 | 880–960 | 1427–1518 | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain by all Beam Tilts, average, dBi | 14.5 | 14.9 | 15.1 | 15.8 | 17.0 | 18.0 | 18.6 | 18.2 |
| Gain by all Beam Tilts Tolerance, dB | ±0.3 | ±0.3 | ±0.3 | ±0.4 | ±0.7 | ±0.6 | ±0.6 | ±0.7 |
| Gain by Beam Tilt, average, dBi | 2 ° | 14.4 8 ° | 14.514 ° | 14.4 | 2 ° | 14.8 8 ° | 15.014 ° | 14.9 | 2 ° | 15.0 8 ° | 15.114 ° | 15.0 | 2 ° | 15.7 7 ° | 15.812 ° | 15.8 | 2 ° | 16.9 7 ° | 17.112 ° | 16.9 | 2 ° | 17.9 7 ° | 18.112 ° | 17.7 | 2 ° | 18.7 7 ° | 18.812 ° | 18.0 | 2 ° | 18.2 7 ° | 18.312 ° | 17.8 |
| Beamwidth, Horizontal Tolerance, degrees | ±2.6 | ±2.4 | ±1.5 | ±2.6 | ±5 | ±7.5 | ±7 | ±8 |
| Beamwidth, Vertical Tolerance, degrees | ±0.9 | ±0.5 | ±0.6 | ±0.3 | ±0.5 | ±0.4 | ±0.2 | ±0.3 |
| USLS, beampeak to 20° above beampeak, dB | 14 | 15 | 14 | 17 | 17 | 17 | 15 | 13 |
| Front-to-Back Total Power at 180° ± 30°, dB | 23 | 23 | 23 | 25 | 25 | 26 | 26 | 24 |
| CPR at Boresight, dB | 14 | 14 | 14 | 18 | 17 | 19 | 17 | 17 |
| CPR at Sector, dB | 10 | 10 | 8 | 4 | 9 | 9 | 8 | 3 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 519.0 N @ 150 km/h (116.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 662.0 N @ 150 km/h (148.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 497.0 N @ 150 km/h (111.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 532 mm | 20.945 in |
| Depth, packed | 387 mm | 15.236 in |
| Length, packed | 2127 mm | 83.74 in |
| Weight, gross | 44.7 kg | 98.547 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
General Specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 8 |
Remote Electrical Tilt (RET) Information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (3) | Low band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 395 mm | 15.551 in |
| Depth | 203 mm | 7.992 in |
| Length | 1980 mm | 77.953 in |
| Net Weight, without mounting kit | 29.4 kg | 64.816 lb |
Electrical Specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W @ 50 °C |
Electrical Specifications
| Frequency Band, MHz | 694–790 | 790–862 | 880–960 | 1427–1518 | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 14.7 | 15.2 | 15.3 | 16.1 | 17.3 | 18.4 | 18.9 | 18.7 |
| Beamwidth, Horizontal, degrees | 73 | 71 | 70 | 67 | 69 | 64 | 56 | 54 |
| Beamwidth, Vertical, degrees | 12.1 | 11 | 10.1 | 7 | 5.9 | 5.2 | 4.5 | 4.3 |
| Beam Tilt, degrees | 2–14 | 2–14 | 2–14 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 14 | 15 | 14 | 19 | 18 | 17 | 15 | 14 |
| Front-to-Back Ratio at 180°, dB | 34 | 36 | 32 | 29 | 34 | 33 | 33 | 30 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 250 | 200 | 200 |
Electrical Specifications, BASTA
| Frequency Band, MHz | 694–790 | 790–862 | 880–960 | 1427–1518 | 1695–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain by all Beam Tilts, average, dBi | 14.5 | 14.9 | 15.1 | 15.8 | 17.0 | 18.0 | 18.6 | 18.2 |
| Gain by all Beam Tilts Tolerance, dB | ±0.3 | ±0.3 | ±0.3 | ±0.4 | ±0.7 | ±0.6 | ±0.6 | ±0.7 |
| Gain by Beam Tilt, average, dBi | 2 ° | 14.4; 8 ° | 14.5;14 ° | 14.4 | 2 ° | 14.8; 8 ° | 15.0;14 ° | 14.9 | 2 ° | 15.0; 8 ° | 15.1;14 ° | 15.0 | 2 ° | 15.7; 7 ° | 15.8;12 ° | 15.8 | 2 ° | 16.9; 7 ° | 17.1;12 ° | 16.9 | 2 ° | 17.9; 7 ° | 18.1;12 ° | 17.7 | 2 ° | 18.7; 7 ° | 18.8;12 ° | 18.0 | 2 ° | 18.2; 7 ° | 18.3;12 ° | 17.8 |
| Beamwidth, Horizontal Tolerance, degrees | ±2.6 | ±2.4 | ±1.5 | ±2.6 | ±5 | ±7.5 | ±7 | ±8 |
| Beamwidth, Vertical Tolerance, degrees | ±0.9 | ±0.5 | ±0.6 | ±0.3 | ±0.5 | ±0.4 | ±0.2 | ±0.3 |
| USLS, beampeak to 20° above beampeak, dB | 14 | 15 | 14 | 17 | 17 | 17 | 15 | 13 |
| Front-to-Back Total Power at 180° ± 30°, dB | 23 | 23 | 23 | 25 | 25 | 26 | 26 | 24 |
| CPR at Boresight, dB | 14 | 14 | 14 | 18 | 17 | 19 | 17 | 17 |
| CPR at Sector, dB | 10 | 10 | 8 | 4 | 9 | 9 | 8 | 3 |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 519.0 N @ 150 km/h (116.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 662.0 N @ 150 km/h (148.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 497.0 N @ 150 km/h (111.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and Weights
| Width, packed | 532 mm | 20.945 in |
| Depth, packed | 387 mm | 15.236 in |
| Length, packed | 2127 mm | 83.74 in |
| Weight, gross | 44.7 kg | 98.547 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory Compliance/Certifications
| Agency | Classification |
|
ISO 9001:2015
|
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
